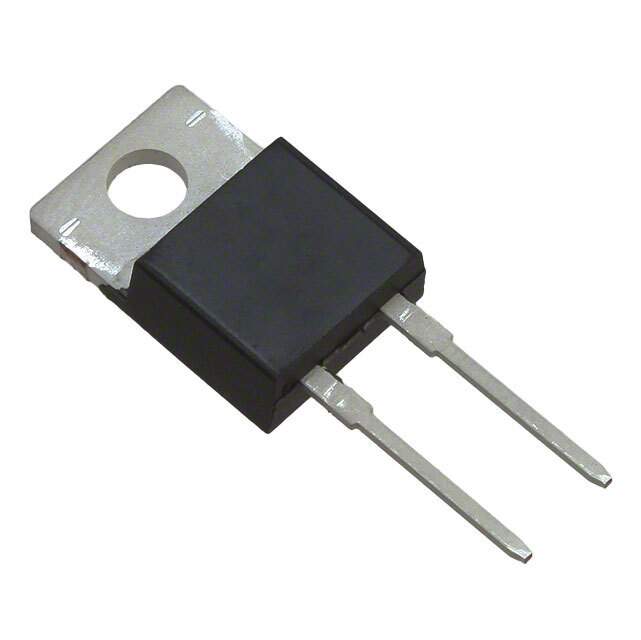

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 1.8V @ 6A
Speed(Frequency) No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200μA @ 600V
Capacitance @ Vr, F 340pF @ 0V, 1MHz
Mounting Through Hole
Case / Package TO-220-2
Operating Temperature - Junction -55°C to 175°C
Win Source Part Number 000294-CSD06060A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CSD06060A CAD Model

Description

Overview

The CSD06060A is a versatile SiC Schottky diode that addresses the need for efficiency in high-power applications. Its robust construction supports extensive operational demands.

Features and Benefits

  • Low power loss
  • High surge endurance
  • Reduced EMI emissions
  • Wide operating temperature range
  • Eco-friendly materials

Applications

  • Power inverters
  • Industrial automation
  • Battery chargers
  • Power conditioning systems
  • High-efficiency rectifiers

Additional Details

The CSD06060A is designed to minimize power loss while ensuring thermal efficiency, making it suitable for a wide range of demanding electrical applications.
