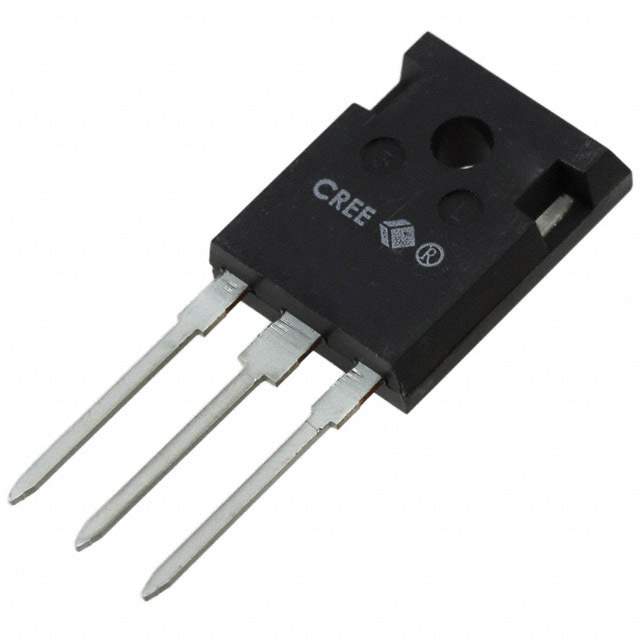

C3D20065D Real Image
Same model may have multiple batches, images only for reference.

C3D20065D

Part No C3D20065D
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 650V TO247
Datasheet
C3D20065D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Array 1 Pair Common Cathode Silicon Carbide Schottky 650 V 10A (DC) Through Hole TO-247-3
Manufacturer Cree/Wolfspeed
Series Z-Rec®
Package Tube
Part Status Not For New Designs
Speed No Recovery Time > 500mA (Io)
Mounting Through Hole
Package TO-247-3
Case / Package TO-247-3
Family Name C3D20065
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 30
Popularity High
Supply and Demand Status Balance
Win Source Part Number 914511-C3D20065D
Ultra Librarian 3D Model Ultra Librarian C3D20065D CAD Model

Description

The Cree/Wolfspeed Z-Rec® diode array is a high-performance silicon carbide Schottky diode.

  • Configuration: Common cathode
  • DC Current: Up to 10A @ 650V
  • Package: TO-247-3
  • Mounting: Through-hole
  • Recovery Time: No recovery time greater than 500mA (Io)
  • Package: Tube
  • Family Name: C3D20065
  • Category: Discrete semiconductor products
  • Supply and Demand Status: Balanced
  • Package Contains: 30 units
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
