Products specifications

Categories Discrete Semiconductor Products
Manufacturer Cree/Wolfspeed
Series Zero Recovery
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Maximum) @ If 1.8V @ 5A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 200μA @ 1200V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247-3
Win Source Part Number 770895-C2D10120D
Popularity Medium
Supply and Demand Status Limited
Family Name C2D10120D
Introduction Date September 02, 2015
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2020
Ultra Librarian 3D Model Ultra Librarian C2D10120D CAD Model

Description

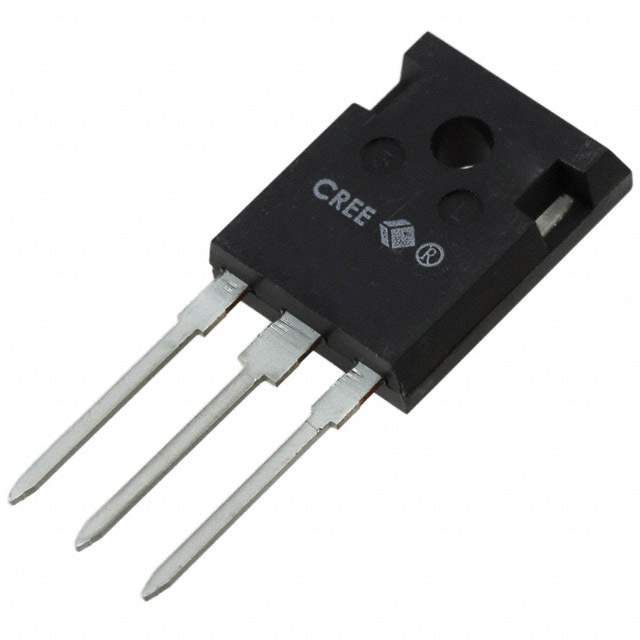

The C2D10120D is a silicon carbide Schottky diode from Cree/Wolfspeed.

  • Maximum Reverse Voltage: 1200V
  • Forward Voltage: 1.8V @ 5A
  • Current Rating: 10A
  • Package: TO-247-3
  • Recovery Time: None
  • Reverse Leakage Current: 200μA @ 1200V
  • Operating Temperature Range: -55°C to 175°C
  • Applications: Power factor correction, solar inverters, motor drives
