Same model may have multiple batches, images only for reference.

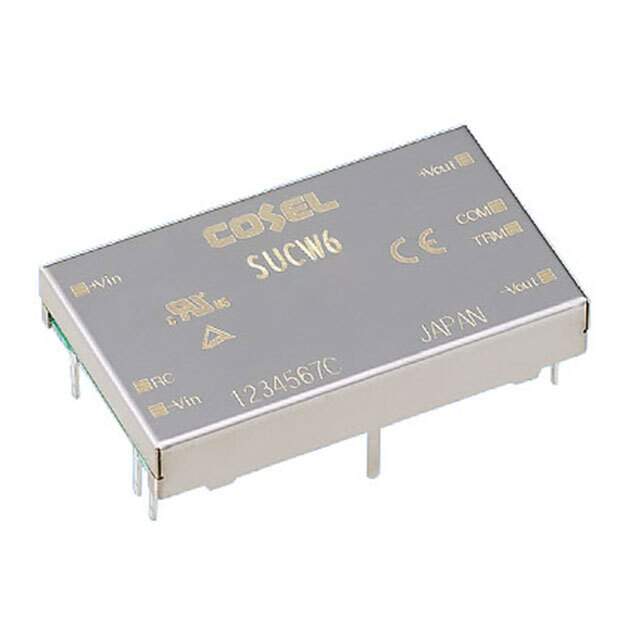

SUCW60512C Real Image
Same model may have multiple batches, images only for reference.

SUCW60512C

Part No SUCW60512C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Module DC-DC 5VIN 2-OUT 12V/-12V 0.25A 6W 7-Pin DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series SUCW
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 4.5V
Voltage Input MAX 9V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Maximum) 250mA, 250mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Operating Temperature Range -40°C ~ 85°C (With Derating)
Efficiency 78%
Mounting Style Through Hole
Package 7-DIP Module
Dimension 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm)
Win Source Part Number 795835-SUCW60512C
Popularity Medium
Supply and Demand Status Limited
Family Name SUCW60512
Introduction Date July 11, 2006
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SUCW60512C CAD Model

Description

The Cosel USA SUCW60512C is a 2-output isolated module DC-DC converter.

  • Series: SUCW
  • Power Output: 0W
  • Package: 7-DIP module
  • Features: Remote on/off and OCP
  • Size: 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm)
  • Applications: ITE (Commercial)
  • Voltage Isolation: 500V
  • Maximum Output Current: 250mA
  • Input Voltage: 4.5V to 9V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 78%
  • Mounting: Through hole
  • Package: 5-DIP module
