Same model may have multiple batches, images only for reference.

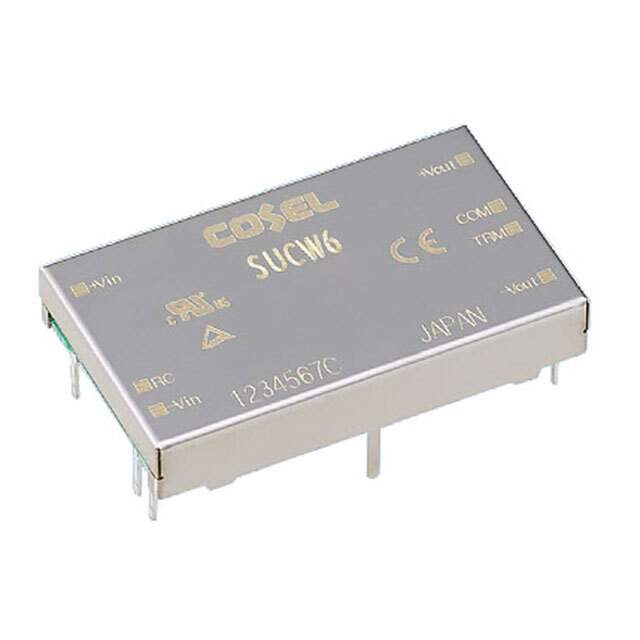

SUCW62412C Real Image
Same model may have multiple batches, images only for reference.

SUCW62412C

Part No SUCW62412C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUCW (6W)
Package Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 7-DIP Module
Size / Dimension 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm)
Base Product Number SUCW62412
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336723-SUCW62412C
Ultra Librarian 3D Model Ultra Librarian SUCW62412C CAD Model

Description

The Cosel USA SUCW62412C is a 6W isolated module DC-DC converter that is designed for ITE (Commercial) applications.

  • Remote On/Off: Yes
  • Overcurrent Protection: Yes
  • Package / Case: Box
  • Dimension: 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm)
  • Number of Outputs: 2
  • Maximum Output Current: 250mA each
  • Input Voltage: 18V to 36V
  • Output Voltage: 12V and -12V
  • Efficiency: 86%
  • Operating Temperature: -40°C ~ 85°C
  • Series: SUCW
