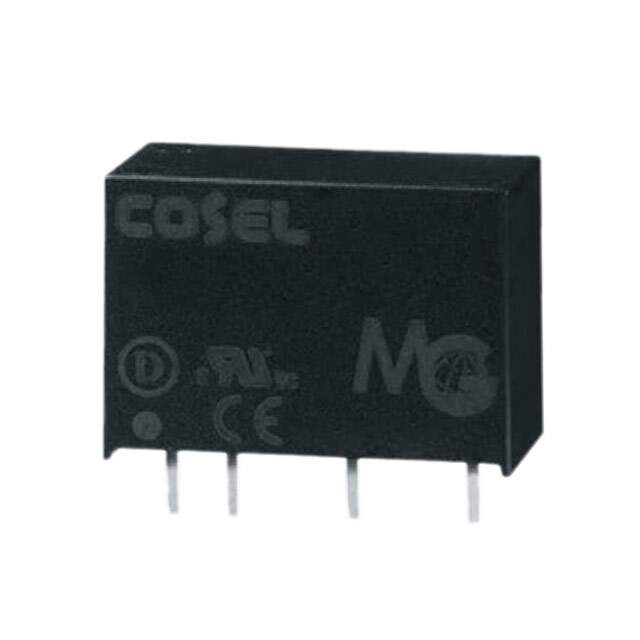

MGFS1R52405 Real Image
Same model may have multiple batches, images only for reference.

MGFS1R52405

Part No MGFS1R52405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1.5W / Isolated Module DC DC Converter 1 Output 5V 300mA 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFS (1.5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 300mA
Power (Watts) 1.5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337110-MGFS1R52405
Ultra Librarian 3D Model Ultra Librarian MGFS1R52405 CAD Model

Description

The Cosel USA 1337110-MGFS1R52405 is a DC-DC converter module that belongs to the MGFS (1.5W) series.

  • Manufacturer: Cosel USA
  • Series: MGFS (1.5W)
  • Type: Isolated Module
  • Features: Overcurrent Protection (OCP)
  • Package: Tube
  • Dimensions: 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Maximum Output Current: 300mA
  • Input Voltage: 9V to 36V
  • Output Voltage: 5V
  • Efficiency: 80%
  • Mounting Type: Through-Hole
  • Package/Case: 4-SIP Module
  • Operating Temperature: -40°C to 85°C
