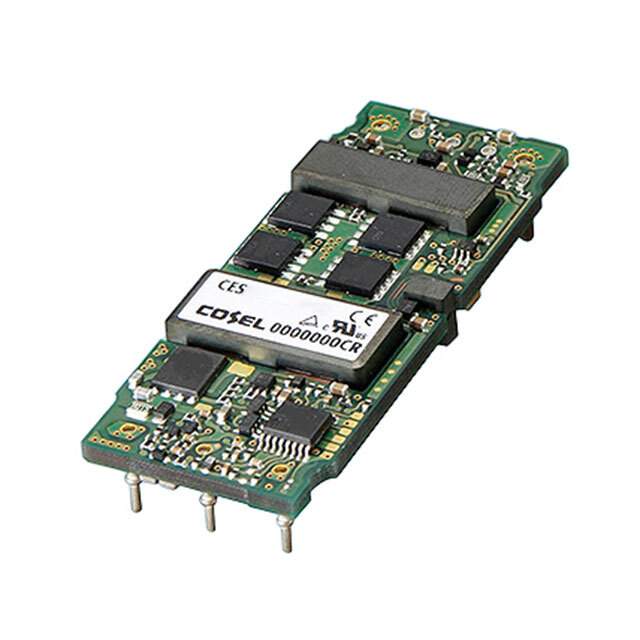

CES24050-16 Real Image
Same model may have multiple batches, images only for reference.

CES24050-16

Part No CES24050-16
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 16A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CES (80W)
Package Box
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 16A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module
Size / Dimension 2.28" L x 0.90" W x 0.33" H (57.9mm x 22.8mm x 8.5mm)
Base Product Number CES24050
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336721-CES24050-16
Ultra Librarian 3D Model Ultra Librarian CES24050-16 CAD Model

Description

The CES24050-16 is an 80W Isolated Module DC-DC Converter from Cosel USA, Inc.

  • Type: Isolated Module
  • Voltage - Isolation: 1.5kV
  • Output: Single
  • Current - Output (Max): 16A
  • Voltage - Input (Min): 18V
  • Voltage - Input (Max): 36V
  • Voltage - Output: 5V
  • Power (Watts): 80W
  • Efficiency: 91%
  • Application: ITE (Commercial)
  • Package / Case: 8-DIP Module
  • Size / Dimension: 2.28" L x 0.90" W x 0.33" H (57.9mm x 22.8mm x 8.5mm)
  • Series: CES
