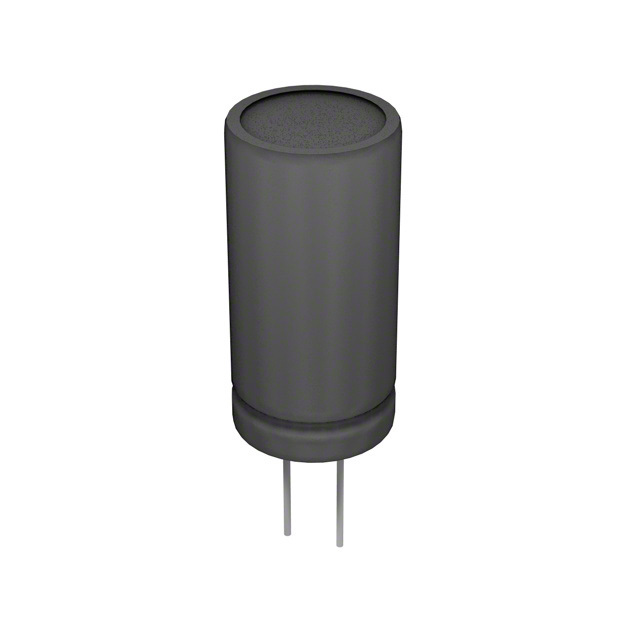

Same model may have multiple batches, images only for reference.
SXR822M016ST Cornell Dubilier Electronics (CDE)
Same model may have multiple batches, images only for reference.

SXR822M016ST

Part No SXR822M016ST
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SXR822M016ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SXR
Package Bulk
Product Status Obsolete
Capacitance 8200 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 50mOhm @ 120Hz
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.48 A @ 120 Hz
Ripple Current @ High Frequency 2.46 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 300
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307352-SXR822M016ST
Ultra Librarian 3D Model Ultra Librarian SXR822M016ST CAD Model

Description

The SXR series aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE) is a general-purpose capacitor designed to deliver reliable performance.

  • Capacitance: 8200 µF
  • Tolerance: ±20%
  • Package: Radial, can
  • Voltage Rating: 16V
  • ESR (Equivalent Series Resistance): 50mOhm @ 120Hz
  • Temperature Range: -40°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Packaging: Bulk
  • Lead Spacing: 0.295" (7.50mm)
  • Manufacturer: Cornell Dubilier Electronics (CDE)
