Same model may have multiple batches, images only for reference.

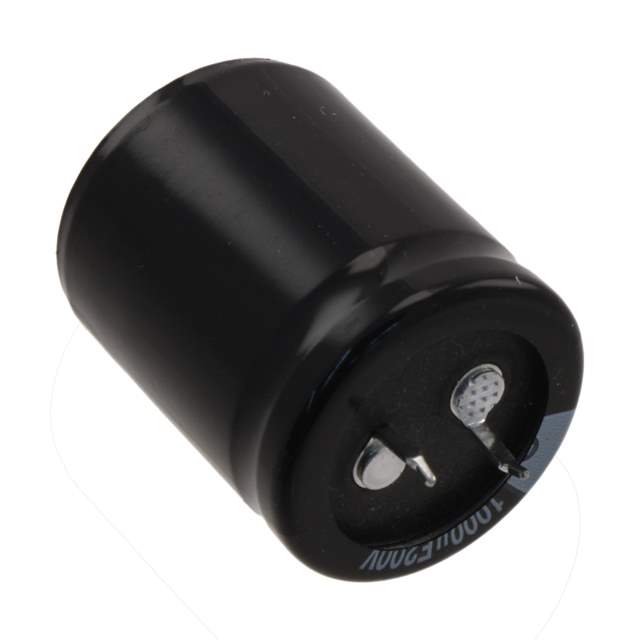

SLPX821M315E9P3 Real Image
Same model may have multiple batches, images only for reference.

SLPX821M315E9P3

Part No SLPX821M315E9P3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SLPX821M315E9P3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SLPX
Package Bulk
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 315 V
ESR (Equivalent Series Resistance) 243mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 3.28 A @ 120 Hz
Ripple Current @ High Frequency 4.82 A @ 20 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1307504-SLPX821M315E9P3
Ultra Librarian 3D Model Ultra Librarian SLPX821M315E9P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX series aluminum electrolytic capacitor is a general-purpose capacitor designed for reliable and long-lasting performance.

  • Capacitance: 820 µF
  • Voltage Rating: 315 V
  • Lead Spacing: 0.394" (10.00mm)
  • Mounting Type: Through-Hole
  • Package: Snap-In, Radial Can
  • Polarization: Polarized
  • Temperature Range: -25°C to 85°C
  • Lifetime: 3000 hours @ 85°C
  • Ripple Current (120 Hz): 3.28 A
  • Ripple Current (20 kHz): 4.82 A
