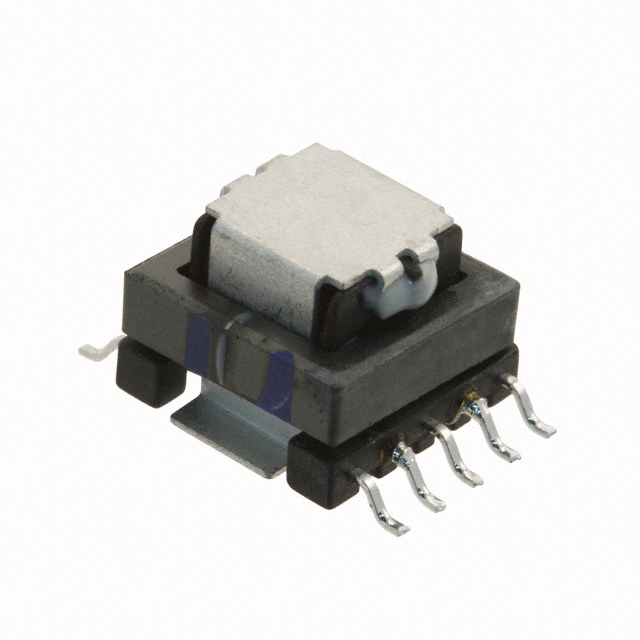

Same model may have multiple batches, images only for reference.
B82801C1265A150 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82801C1265A150

Part No B82801C1265A150
Manufacturer EPCOS (TDK)
Catalog Current Sense Transformers
Description 1:150 Current Sense Transformer 50kHz ~ 500kHz 0.28mOhm Primary, 2.2Ohm Secondary 12.6 mH Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82801C
Packaging Reel - TR
Frequency Range 50kHz ~ 500kHz
Type Invasive
Inductance 12.6 mH
DC Resistance (DCR) 0.28mOhm Primary, 2.2Ohm Secondary
Mounting Type Surface Mount
Size / Dimension 0.560" L x 0.530" W (14.22mm x 13.46mm)
Height - Seated (Max) 0.394" (10.00mm)
Termination Style Gull Wing
Weight 0.011 lb (4.99 g)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1482218-B82801C1265A150
Ultra Librarian 3D Model Ultra Librarian B82801C1265A150 CAD Model
