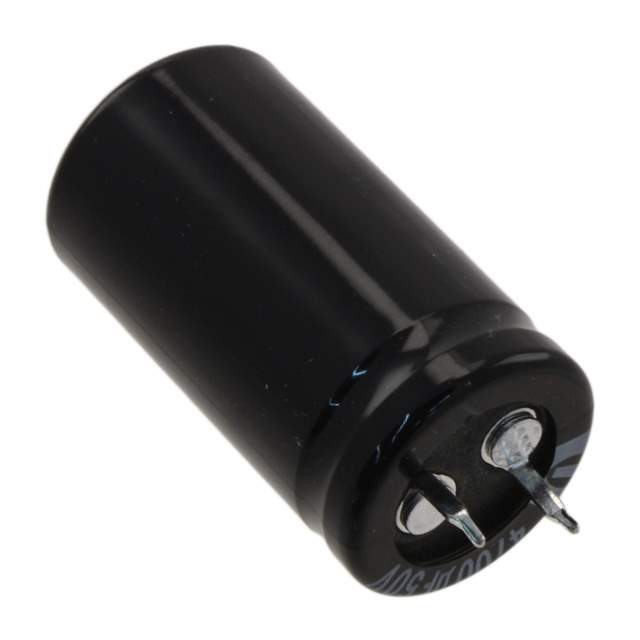

Same model may have multiple batches, images only for reference.

SLPX561M200A7P3

Name: SLPX561M200A7P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307567
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLPX561M200A7P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLPX561M200A7P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLPX
Package	Bulk
Capacitance	560 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	355mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.18 A @ 120 Hz
Ripple Current @ High Frequency	3.2 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.575" (40.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Other Names	338-1633,2266-SLPX561M200A7P3,SLPX561M200A7P3
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307567-SLPX561M200A7P3
Ultra Librarian 3D Model	Ultra Librarian SLPX561M200A7P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX561M200A7P3 aluminum electrolytic capacitor is designed for general-purpose applications.

Capacitance: 560 µF
Voltage Rating: 200 V
Package: Radial, can - snap-in
Mounting Type: Through-hole
Height: 1.575" (40.00mm)
Diameter: 0.866" (22.00mm)
ESR (Equivalent Series Resistance): 355mOhm @ 120Hz
Ripple Current: 2.18 A @ 120 Hz and 3.2 A @ 20 kHz
Lifetime: 3000 Hrs @ 85°C
Polarized: Yes
Tolerance: ±20%
