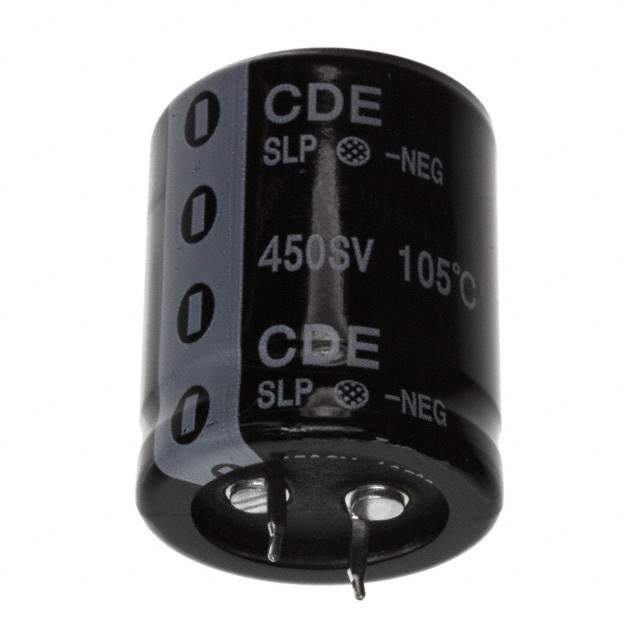

Same model may have multiple batches, images only for reference.

SLP681M220E5P3

Name: SLP681M220E5P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307855
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLP681M220E5P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLP681M220E5P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLP0712TE (750W)
Package	Bulk
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	220 V
ESR (Equivalent Series Resistance)	293mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.93 A @ 120 Hz
Ripple Current @ High Frequency	2.84 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.378" (35.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307855-SLP681M220E5P3
Ultra Librarian 3D Model	Ultra Librarian SLP681M220E5P3 CAD Model

Description

This aluminum electrolytic capacitor from Cornell Dubilier Electronics is part of the SLP0712TE (750W) series and is ideal for general purpose applications.

Series: SLP0712TE (750W)
Application: General purpose
Capacitance: 680 µF
Voltage Rating: 220 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 293mOhm @ 120Hz
Lifetime: 3000 hours @ 105°C
Package: Radial, can - snap-in
Lead Spacing: 0.394" (10.00mm)
Height: 1.378" (35.00mm)
Diameter: 1.181" (30.00mm)
Package Quantity: 50 units
Polarized: Yes
Ripple current @ low frequency: 1.93 A @ 120 Hz
Ripple current @ high frequency: 2.84 A @ 20 kHz
