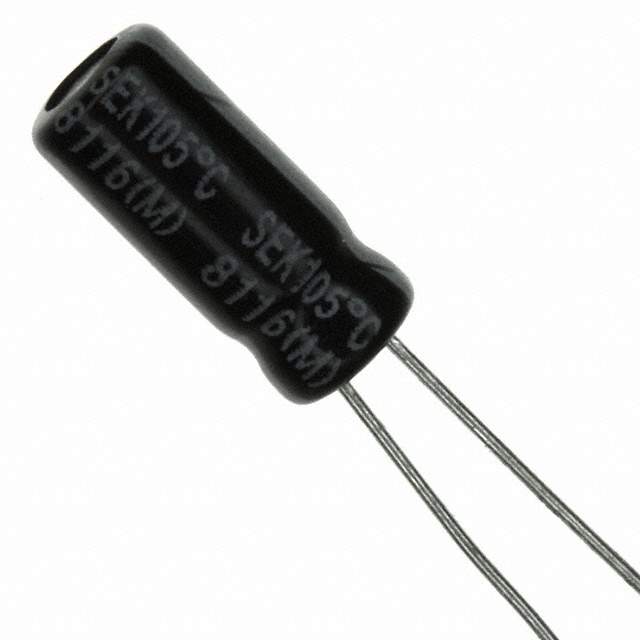

Same model may have multiple batches, images only for reference.

SEK2R2M200ST

Get a Quote

Part No	SEK2R2M200ST
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SEK2R2M200ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SEK
Package	Bulk
Capacitance	2.2 µF
Tolerance	±20%
Voltage - Rated	200 V
ESR (Equivalent Series Resistance)	90.47Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	25 mA @ 120 Hz
Ripple Current @ High Frequency	40 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.453" (11.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308399-SEK2R2M200ST
Ultra Librarian 3D Model	Ultra Librarian SEK2R2M200ST CAD Model

Description

The Cornell Dubilier Electronics (CDE) Aluminum Electrolytic Capacitor has a capacitance of 2.2 µF and a voltage rating of 200 V.

Capacitance: 2.2 µF
Voltage Rating: 200 V
Package: Radial, can package
Mounting Type: Through hole
ESR: 90.47Ohm @ 120Hz
Ripple Current: 25 mA @ 120 Hz and 40 mA @ 10 kHz
Temperature Range: -40°C ~ 105°C
Dimension: 0.248" Dia (6.30mm)
