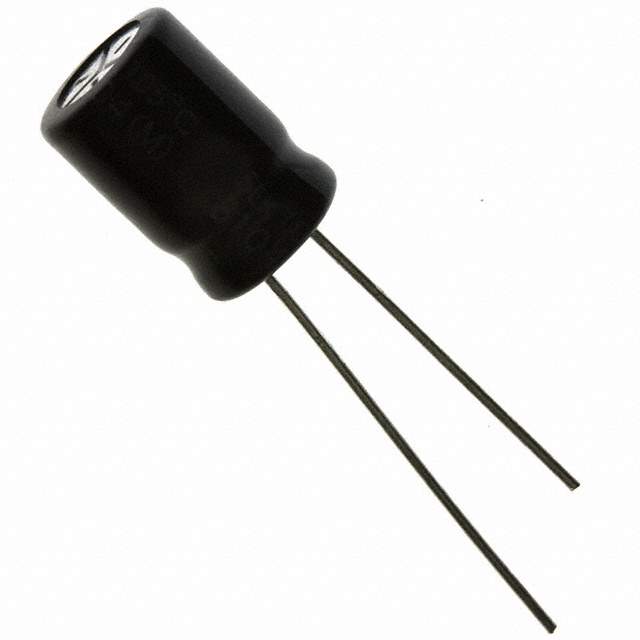

Same model may have multiple batches, images only for reference.

SEK220M100ST

Name: SEK220M100ST
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1308396
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SEK220M100ST
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SEK220M100ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SEK
Package	Bulk
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	6.03Ohm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Lead Spacing	0.138" (3.50mm)
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Other Names	338-1747,SEK220M100ST
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308396-SEK220M100ST
Ultra Librarian 3D Model	Ultra Librarian SEK220M100ST CAD Model

Description

The SEK220M100ST is an aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE).

Capacitance: 22 µF
Voltage Rating: 100 V
Tolerance: ±20%
ESR: 6.03Ohm
Polarization: Not polarized
Mounting Type: Through-hole
Package: Radial, can package
Diameter: 0.315" (8.00mm)
Height: 0.433" (11.00mm)
Lifetime: 2000 Hrs @ 105°C
Application: Suitable for use in a range of general-purpose applications
Quality: High-quality and reliable capacitor
