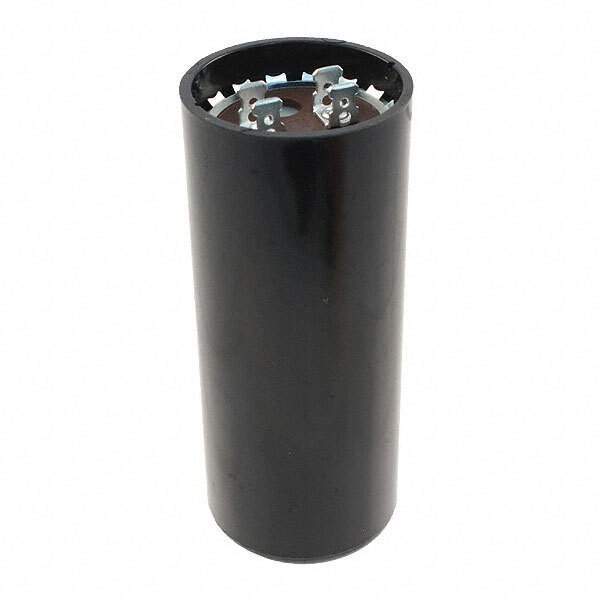

Same model may have multiple batches, images only for reference.

PSU54015B

Name: PSU54015B
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1101834
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PSU54015B
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 540UF 125V QC TERM / 540 µF 125 V Aluminum Electrolytic Capacitors Radial, Can - QC Terminals
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	PSU
Package	Bulk
Capacitance	540 µF
Tolerance	0%, +20%
Voltage - Rated	125 V
Temperature Range - Operating	-40°C ~ 65°C
Polarization	Bi-Polar
Applications	Motor Start
Dimension	1.813" Dia (46.05mm)
Height - Seated (Max)	4.435" (112.65mm)
Mounting Type	Chassis Mount
Package / Case	Radial, Can - QC Terminals
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0055
Other Names	2266-PSU54015B,PSU54015B-ND,338-3352
Standard Package	1
Win Source Part Number	1101834-PSU54015B
Ultra Librarian 3D Model	Ultra Librarian PSU54015B CAD Model

Description

The PSU series aluminum electrolytic capacitor by Cornell Dubilier Electronics (CDE) is a bi-polar capacitor ideal for motor start applications.

Capacitance: 540 µF
Tolerance: 0%, +20%
Voltage Rating: 125 V
Mounting Type: Chassis mount
ESR (Equivalent Series Resistance): Not specified
Lifetime @ temp.: Not specified
Surface Mount Land Size: Not specified
Package/Case: Radial, can - QC terminals
Temperature Range: -40°C ~ 65°C
Dimension: 1.813" Dia (46.05mm)
Alternative Part: PSU54015B is an alternative part for PSU59015A, PSU54015A, PSU54065A, and E36D251LPN561TA54MPSU54015B
