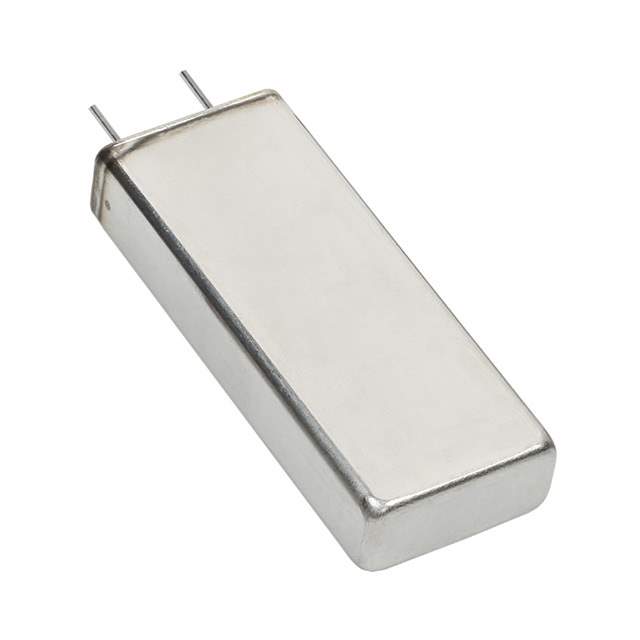

Same model may have multiple batches, images only for reference.

MLSG243M010JB0C

Name: MLSG243M010JB0C
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1128141
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MLSG243M010JB0C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 24000UF 20% 10V FLATPCK / 24000 µF 10 V Aluminum Electrolytic Capacitors FlatPack 42mOhm @ 120Hz 5000 Hrs @ 125°C
Datasheet	MLSG243M010JB0C Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	MLSG Slimpack
Package	Bulk
Capacitance	24000 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	42mOhm @ 120Hz
Lifetime @ Temp.	5000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Polarization	Bi-Polar
Applications	General Purpose
Ripple Current @ Low Frequency	15.4 A @ 120 Hz
Ripple Current @ High Frequency	15.8 A @ 20 kHz
Lead Spacing	0.500" (12.70mm)
Dimension	3.000" L x 1.000" W (76.20mm x 25.40mm)
Height - Seated (Max)	0.500" (12.70mm)
Mounting Type	Through Hole
Package / Case	FlatPack
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0085
Standard Package	10
Win Source Part Number	1128141-MLSG243M010JB0C
Ultra Librarian 3D Model	Ultra Librarian MLSG243M010JB0C CAD Model

Description

The Cornell Dubilier Electronics (CDE) MLSG Slimpack capacitor is a high-quality aluminum electrolytic capacitor that is perfect for general-purpose applications.

Capacitance: 24000 µF
Voltage Rating: 10 V
Mounting: through-hole
Height: 0.500" (12.70mm)
ESR: 42mOhm @ 120Hz
Lifetime: 5000 Hrs @ 125°C
Type: bi-polar
Tolerance: ±20%
Ripple Current: 15.4 A @ 120 Hz (low frequency) and 15.8 A @ 20 kHz (high frequency)
Package/Case: FlatPack
Temperature Range: -55°C ~ 125°C
RoHS: non-compliant
REACH: affected
