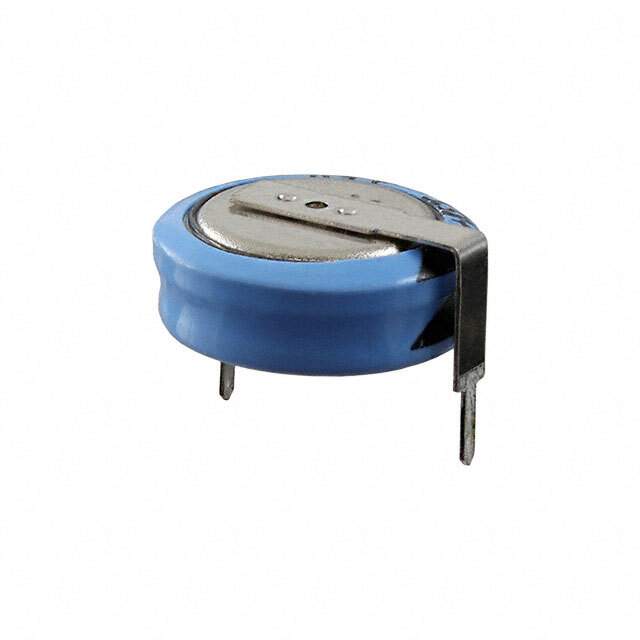

EDS224Z3R6H Real Image
Same model may have multiple batches, images only for reference.

EDS224Z3R6H

Part No EDS224Z3R6H
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 220MF -20% +80% 3.6V T/H / 220 mF (EDLC) Supercapacitor 3.6 V Axial, Can - Horizontal 75Ohm @ 1kHz 1000 Hrs @ 85°C
Datasheet
EDS224Z3R6H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Cornell Dubilier Electronics (CDE)
Series EDS
Package Bulk
Capacitance 220 mF
Tolerance -20%, +80%
Voltage - Rated 3.6 V
ESR (Equivalent Series Resistance) 75Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Axial, Can - Horizontal
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.453" Dia (11.50mm)
Height - Seated (Max) 0.236" (6.00mm)
Temperature Range - Operating -25°C ~ 85°C
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
California Prop 65 Warning Information
Win Source Part Number 1351770-EDS224Z3R6H
Ultra Librarian 3D Model Ultra Librarian EDS224Z3R6H CAD Model

Description

The Cornell Dubilier Electronics (CDE) EDS series capacitor is an axial, can-horizontal type of electric double layer capacitor (EDLC) with a capacitance of 220 mF and a voltage rating of 3.6 V.

  • Series: EDS
  • Capacitance: 220 mF
  • Voltage - Rated: 3.6 V
  • Tolerance: -20%, +80%
  • ESR (Equivalent Series Resistance): 75Ohm @ 1kHz
  • Lifetime @ Temp.: 1000 hours @ 85°C
  • Mounting Type: Through Hole
  • Package / Case: Axial, Can - Horizontal
  • Size / Dimension: 0.453" Dia (11.50mm)
  • Height - Seated (Max): 0.236" (6.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Operating Temperature: -25°C ~ 85°C
