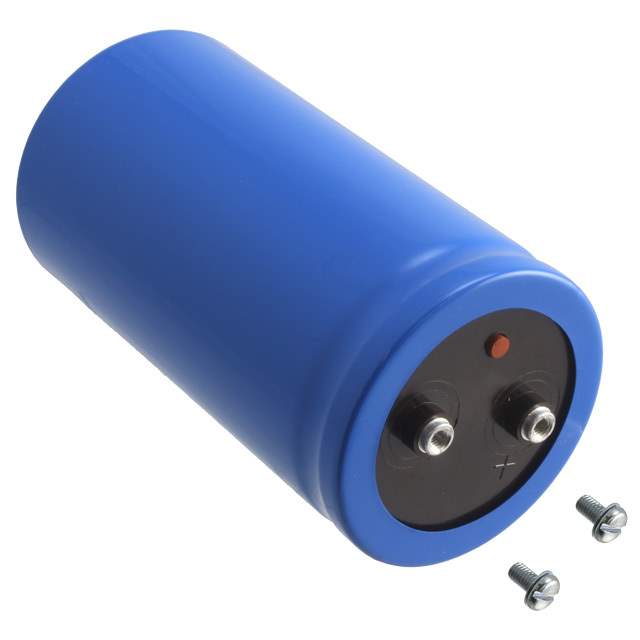

The Cornell Dubilier Electronics (CDE) CGS Series Capacitor is a reliable and efficient solution for general-purpose applications. This component is packaged in bulk and has a capacitance of 7400 µF. The tolerance for this component is -10%, +50% and the voltage rating is 200 V. The ESR (Equivalent Series Resistance) for this component is 18mOhm @ 120Hz and the lifetime @ temp. is 2000 Hrs @ 85°C. This component is polar and has a radial, can-screw terminal package/case. The operating temperature range for this component is -40°C ~ 85°C and the dimension is 3.000" Dia (76.20mm). The MSL Level is 1 (Unlimited) and the HTSUS is 8532.22.0085. Other names for this component include CGS742T200X5L-ND and 338-1431. The ripple current @ low frequency is 15 A @ 120 Hz and the ripple current @ high frequency is 22.5 A @ 10 kHz.

• Series: CGS
• Packaging: Bulk
• Capacitance: 7400 µF
• Tolerance: -10%, +50%
• Voltage Rating: 200 V
• ESR: 18mOhm @ 120Hz
• Lifetime: 2000 Hrs @ 85°C
• Polar: Yes
• Package/Case: Radial, Can-Screw Terminal
• Operating Temperature: -40°C ~ 85°C
• Dimension: 3.000" Dia (76.20mm)
• MSL Level: 1 (Unlimited)
• HTSUS: 8532.22.0085
• Other Names: CGS742T200X5L-ND, 338-1431
• Ripple Current @ Low Frequency: 15 A @ 120 Hz
• Ripple Current @ High Frequency: 22.5 A @ 10 kHz
