Same model may have multiple batches, images only for reference.

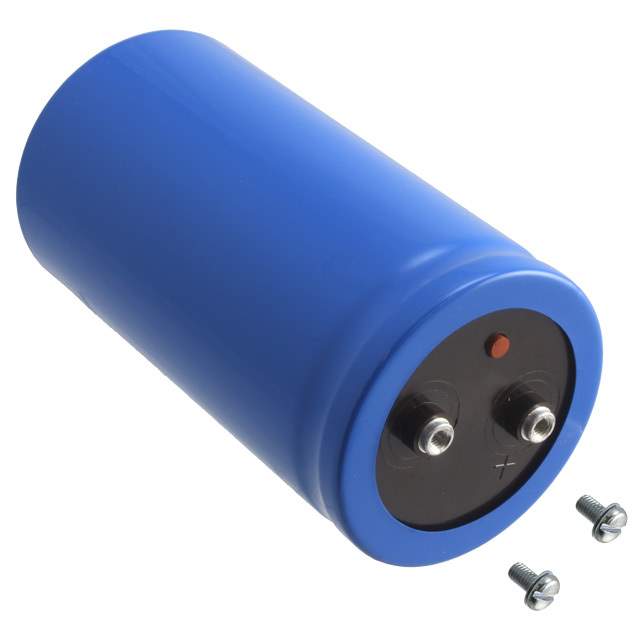

CGS153T250X5R Real Image
Same model may have multiple batches, images only for reference.

CGS153T250X5R

Part No CGS153T250X5R
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 15000UF 250V SCREW / 15000 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 13mOhm @ 120Hz 2000 Hrs @ 85°C
Datasheet
CGS153T250X5R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CGS
Package Bulk
Capacitance 15000 µF
Tolerance -10%, +50%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) 13mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 17.9 A @ 120 Hz
Ripple Current @ High Frequency 26.85 A @ 10 kHz
Dimension 3.000" Dia (76.20mm)
Height - Seated (Max) 5.875" (149.23mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0085
Standard Package 1
Win Source Part Number 1089644-CGS153T250X5R
Ultra Librarian 3D Model Ultra Librarian CGS153T250X5R CAD Model

Description

The CGS153T250X5R is an aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE) with a capacitance of 15000 µF and a voltage rating of 250V.

  • Capacitance: 15000 µF
  • Voltage Rating: 250V
  • Application: General-Purpose
  • Tolerance: -10%, +50%
  • ESR: 13mOhm @ 120Hz
  • Ripple Current: 17.9 A @ 120 Hz
  • Height: 5.875" (149.23mm)
  • Mounting: Chassis-Mounted
  • Dimension: 3.000" Dia (76.20mm)
  • Packaging: Radial, Can - Screw Terminals
  • Lifetime @ Temperature: 2000 Hrs @ 85°C
