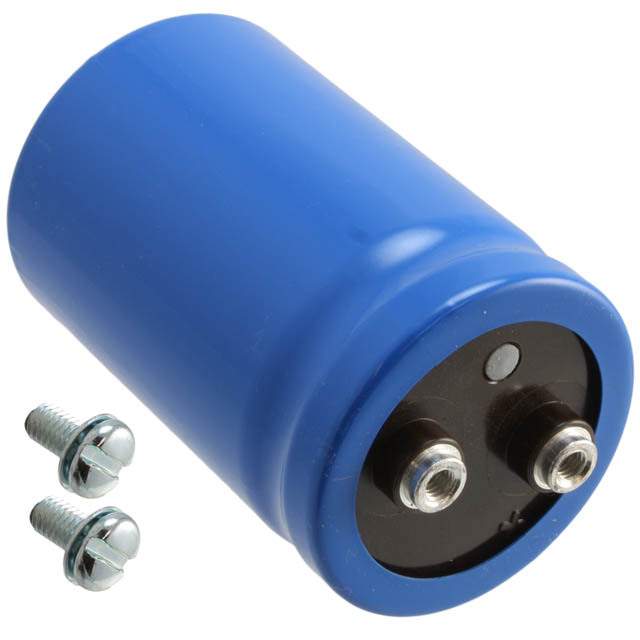

CGS123U100V3C Real Image
Same model may have multiple batches, images only for reference.

CGS123U100V3C

Part No CGS123U100V3C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 12000UF 100V SCREW / Cap Aluminum Lytic 12000uF 100V -10% to 75% (50.8 X 79.38mm) Screw Terminal 0.026 Ohm 7700mA 2000h 85°C
Datasheet
CGS123U100V3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 12000μF
Tolerance -10%, +75%
Voltage Rating DC 100V
ESR (Equivalent Series Resistance) 26 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 7.7A @ 120Hz
Ripple Current - High Frequency 10.01A @ 10kHz
Dimension 2.000" Dia (50.80mm)
Height - Seated (Maximum) 3.125" (79.38mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 775485-CGS123U100V3C
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date August 30, 2005
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS123U100V3C CAD Model

Description

The Cornell Dubilier Electronics (CDE) CGS series capacitor is a high-quality component designed for general applications.

  • Capacitance: 12000μF
  • Tolerance: -10% to +75%
  • ESR (Equivalent Series Resistance): 26 mOhm @ 120Hz
  • Ripple Current: 7.7A @ 120Hz, 10.01A @ 10kHz
  • Polarization: Polarized
  • Voltage Rating DC: 100V
  • Lifetime: 2000 hours @ 85°C
  • Dimension: 2.000" Dia (50.80mm)
  • Package / Case: Radial, Can - Screw Terminals
  • Mounting: Chassis Mount
  • Series: CGS
  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Country of Origin: United States of America
  • Supply and Demand Status: Limited
