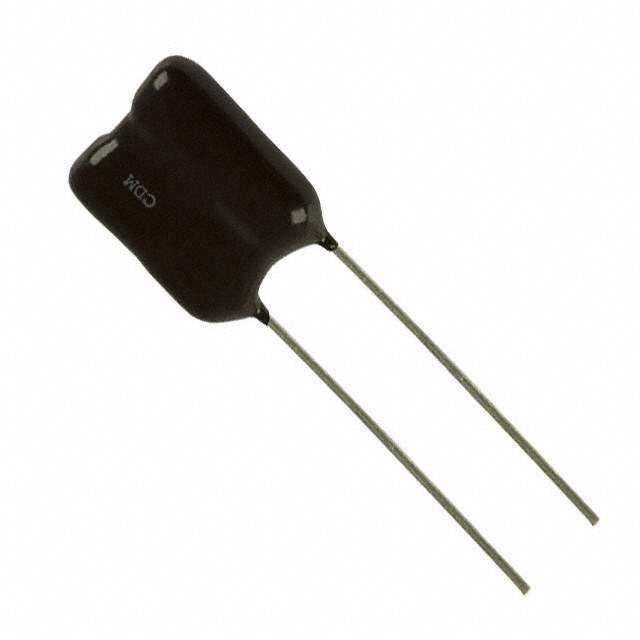

CD30FD472GO3

Part No CD30FD472GO3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 4700PF 2% 500V RADIAL / Cap Mica 0.0047uF 500V 2% (19.8 X 6.9 X 21.8mm) Radial 11.1mm 125°C T/R
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CD30
Packaging Bulk
Capacitance 4700pF
Tolerance ±2%
Voltage Rating DC 500V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package Radial
Lead Spacing 0.437" (11.10mm)
Features General
Dimension 0.780" L x 0.272" W (19.81mm x 6.90mm)
Height - Seated (Maximum) 0.858" (21.80mm)
Win Source Part Number 770929-CD30FD472GO3
Popularity Medium
Supply and Demand Status Limited
Family Name CD30
Introduction Date March 12, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CD30FD472GO3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) 709296 is a capacitor from the CD30 series.

  • Capacitance: 4700pF
  • Voltage Rating: 500V DC
  • Tolerance: ±2%
  • Package Type: Radial
  • Lead Spacing: 0.437" (11.10mm)
  • Operating Temperature Range: -55°C to 125°C
  • Height-Seated (Maximum): 0.858" (21.80mm)
  • Dimension: 0.780" L x 0.272" W (19.81mm x 6.90mm)
