Same model may have multiple batches, images only for reference.

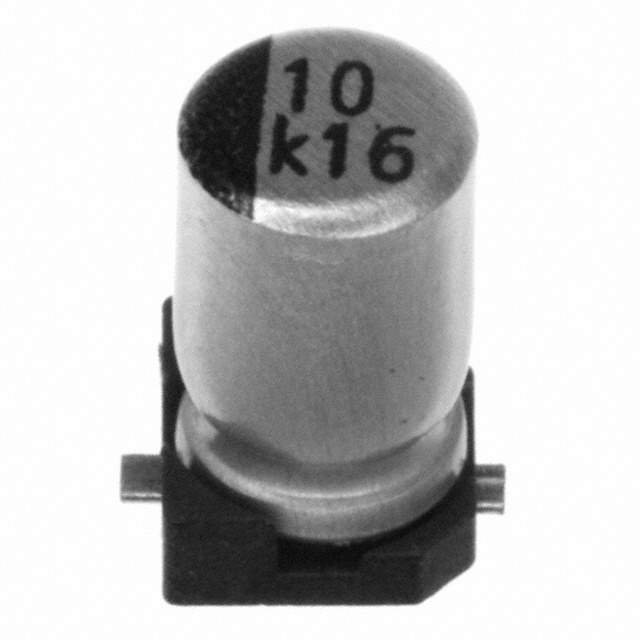

AVE106M16A12T-F Real Image
Same model may have multiple batches, images only for reference.

AVE106M16A12T-F

Part No AVE106M16A12T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V SMD / 10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 33.16Ohm @ 120Hz 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series AVE
Package Tape & Reel
Product Status Obsolete
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 33.16Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 14 mA @ 120 Hz
Ripple Current @ High Frequency 17.5 mA @ 10 kHz
Size / Dimension 0.118" Dia (3.00mm)
Height - Seated (Max) 0.209" (5.30mm)
Surface Mount Land Size 0.130" L x 0.130" W (3.30mm x 3.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
California Prop 65 Warning Information
Win Source Part Number 1338295-AVE106M16A12T-F
Ultra Librarian 3D Model Ultra Librarian AVE106M16A12T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) 1338295-AVE106M16A12T-F is an aluminum electrolytic capacitor with a capacitance of 10μF and a voltage rating of 16V.

  • Capacitance: 10μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Ripple Current: 14mA @ low frequency and 17.5mA @ high frequency
  • Height: 0.209" (5.30mm)
  • Mounting Type: Through Hole
  • Package: Radial, Can - SMD
  • Temperature Range: -40℃ to 85℃
  • Lifetime: 2000 hours @ 85℃
  • Polarized: Yes
  • Surface Mount Land Size: 0.130" L x 0.130" W (3.30mm x 3.30mm)
