Same model may have multiple batches, images only for reference.

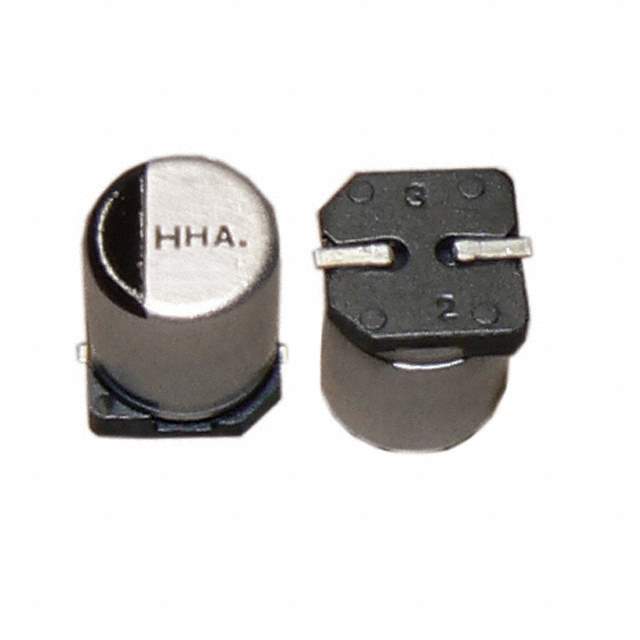

AHA227M16F24T-F Real Image
Same model may have multiple batches, images only for reference.

AHA227M16F24T-F

Part No AHA227M16F24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V SMD / Cap Aluminum Lytic 220uF 16V 20% (8 X 10.2mm) SMD 1.5 Ohm 150mA 2000h 105°C Automotive T/R
Datasheet
AHA227M16F24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 220μF
Tolerance ±20%
Voltage Rating DC 16V
ESR (Equivalent Series Resistance) 1.5 Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 150mA @ 120Hz
Ripple Current - High Frequency 255mA @ 10kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777742-AHA227M16F24T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AHA
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA227M16F24T-F CAD Model

Description

Cornell Dubilier Electronics (CDE) has produced this medium popularity electronic component with limited supply and demand status.

  • Win Source Part Number: 777742-AHA227M16F24T-F
  • Capacitance: 220μF
  • Tolerance: ±20%
  • Operating Temperature Range: -55°C ~ 105°C
  • Lifetime @ temp: 2000 Hrs @ 105°C
  • Polarized: Yes
  • Voltage Rating DC: 16V
