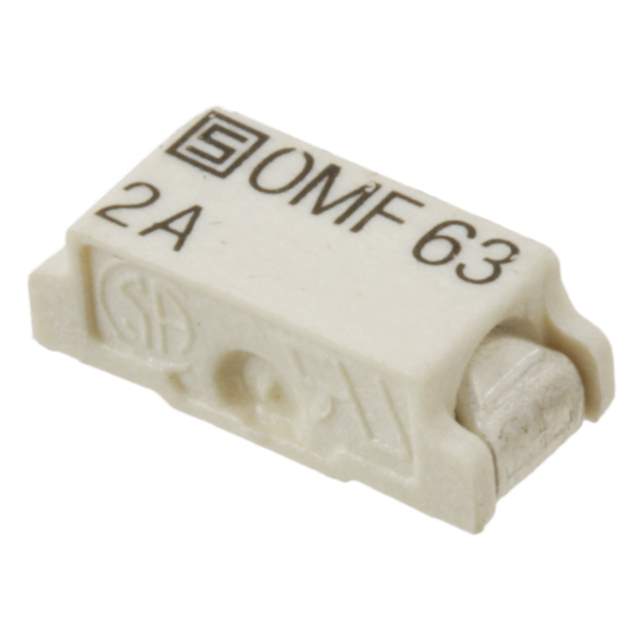

3402.0007.22 Real Image
Same model may have multiple batches, images only for reference.

3402.0007.22

Part No 3402.0007.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 400MA 63VAC/VDC SMD
Datasheet
3402.0007.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 400mA
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.016
Approvals cURus
Temperature Range - Operating -55°C to 125°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Win Source Part Number 1021830-3402.0007.22
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3402.0007.22 CAD Model

Description

The 1021830-3402.0007.22 is a board mount fuse manufactured by Schurter Inc.

  • Current Rating: 400mA
  • Voltage Rating: 63V AC/DC
  • Package Type: Reel - TR
  • Fuse Type: Board Mount
  • Response Time: Fast
  • Breaking Capacity: 50A @ rated voltage
  • Approval: cURus
  • Mounting Technology: SMT
