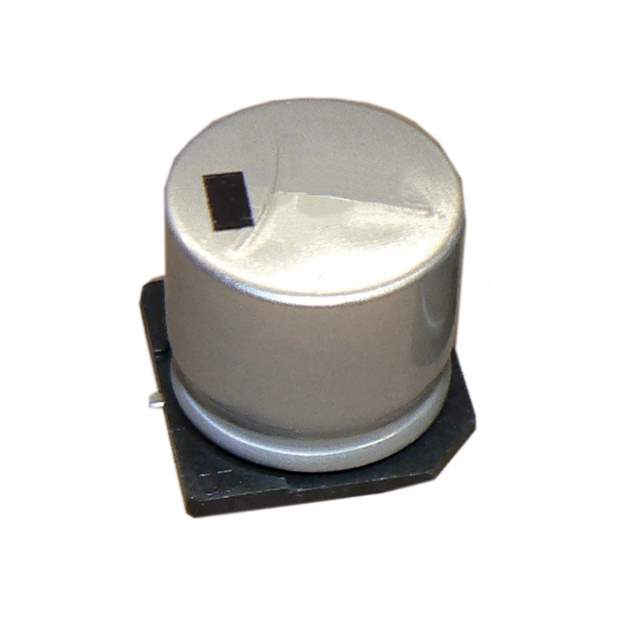

Same model may have multiple batches, images only for reference.

AFK157M35F24T-F

Name: AFK157M35F24T-F
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1024361
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AFK157M35F24T-F
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 35V SMD / 150 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 160 mohm @ 100kHz 2000 Hrs @ 105°C
Datasheet	AFK157M35F24T-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	AFK
Package	Tape & Reel
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	160 mohm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency	450 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Impedance	160 mOhms
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.394" W (8.30mm x 10.00mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	AFK157M35F24TF,338-2154-2,338-2154-6,338-2154-1,AFK157M35F24T-F-ND
Standard Package	500
Win Source Part Number	1024361-AFK157M35F24T-F
Ultra Librarian 3D Model	Ultra Librarian AFK157M35F24T-F CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) AFK157M35F24T-F is an aluminum electrolytic capacitor that is ideal for automotive, bypass, and decoupling applications.

Capacitance: 150 μF
Voltage Rating: 35 V
Impedance: 160 mOhms
ESR: 160 mohm @ 100 kHz
Series: AFK
Package: Tape and Reel
Surface Mount Land Size: 0.327" L x 0.394" W (8.30mm x 10.00mm)
Package/Case: Radial, Can - SMD
Operating Temperature: -55°C to 105°C
Lifetime: 2000 hrs @ 105°C
Polarized: Yes
