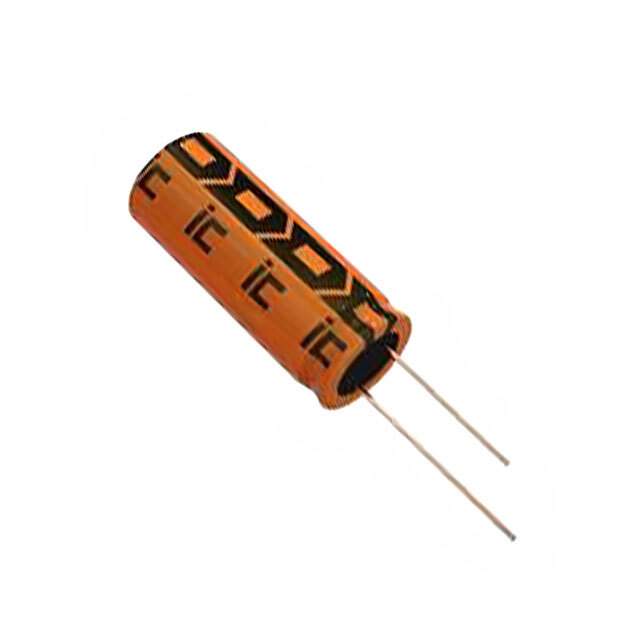

687KXM016MLQ Real Image
Same model may have multiple batches, images only for reference.

687KXM016MLQ

Part No 687KXM016MLQ
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 16V RADIAL / 680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 390.1mOhm @ 120Hz 4000 Hrs @ 105°C
Datasheet
687KXM016MLQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier / Illinois Capacitor
Series KXM
Package Bulk
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 390.1mOhm @ 120Hz
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 528 mA @ 120 Hz
Ripple Current @ High Frequency 880 mA @ 100 kHz
Impedance 184 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 200
Win Source Part Number 1039851-687KXM016MLQ
Ultra Librarian 3D Model Ultra Librarian 687KXM016MLQ CAD Model

Description

The Cornell Dubilier/ Illinois Capacitor KXM series aluminum electrolytic capacitor is a high-quality component designed for general purpose applications.

  • Capacitance: 680 microfarads
  • Voltage Rating: 16V
  • Tolerance: +/-20%
  • Lead Spacing: 5mm
  • Height: 17.5mm
  • Package: Radial, Can
  • ESR @ 120Hz: 390.1mOhm
  • Impedance: 184mOhms
  • Operating Temperature: -55 to 105 degrees Celsius
  • Lifetime @ Temperature: 4000 hours @ 105 degrees Celsius
  • Series: KXM
  • Manufacturer: Cornell Dubilier/ Illinois Capacitor
  • Popularity: High
  • ECCN: EAR99
  • HTSUS Code: 8532.22.0020
