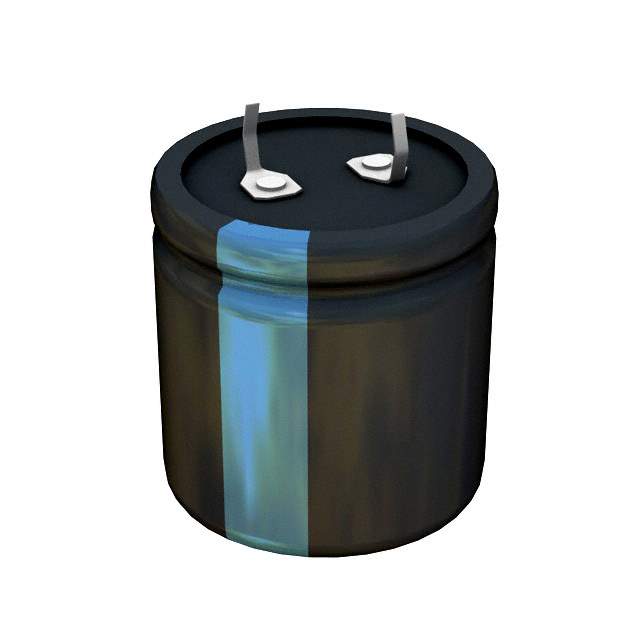

380LX472M063K022 Real Image
Same model may have multiple batches, images only for reference.

380LX472M063K022

Part No 380LX472M063K022
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 63V SNAP / Cap Aluminum Lytic 4700uF 63V 20% (30 X 30mm) Snap-In 10mm 0.08 Ohm 4900mA 3000h 85°C
Datasheet
380LX472M063K022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series 380LX
Packaging Bulk
Capacitance 4700μF
Tolerance ±20%
Voltage Rating DC 63V
ESR (Equivalent Series Resistance) 80 mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 4.9A @ 120Hz
Ripple Current - High Frequency 5.6A @ 20kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.181" Dia (30.00mm)
Height - Seated (Maximum) 1.260" (32.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 777732-380LX472M063K022
Popularity Medium
Supply and Demand Status Limited
Family Name 380LX
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 380LX472M063K022 CAD Model

Description

The Cornell Dubilier Electronics (CDE) 380LX series is a bulk packaged radial, can - snap-in capacitor that is ideal for general applications.

  • Capacitance: 4700μF
  • Tolerance: ±20%
  • Voltage Rating: 63V DC
  • ESR: 80 mOhm @ 120Hz
  • Ripple Current: 4.9A @ 120Hz, 5.6A @ 20kHz
  • Height: 1.260" (32.00mm)
  • Diameter: 1.181" (30.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Lifetime: 3000 Hrs @ 85°C
  • Polarization: Polar
  • Family Name: 380LX
  • Estimated EOL Date: 2027
  • Popularity: Medium
  • Supply and Demand Status: Limited
