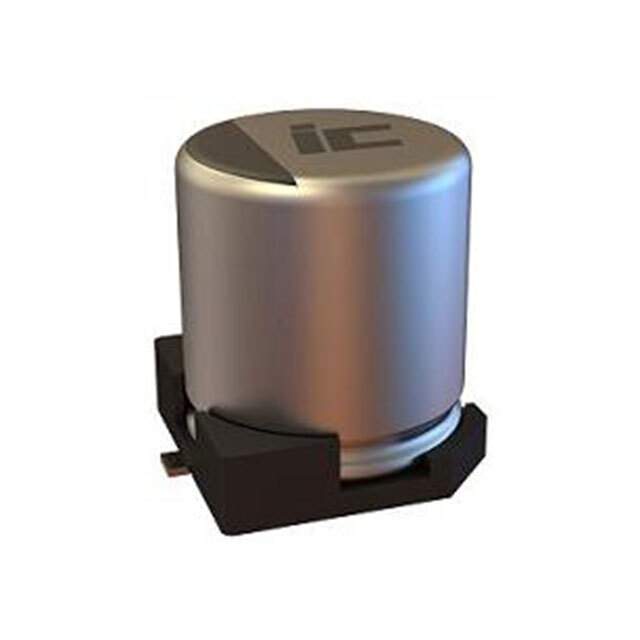

337SMH025M Real Image
Same model may have multiple batches, images only for reference.

337SMH025M

Part No 337SMH025M
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 25V SMD / 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 803.8mOhm @ 120Hz 1000 Hrs @ 105°C
Datasheet
337SMH025M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier / Illinois Capacitor
Series SMH
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 803.8mOhm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 220 mA @ 120 Hz
Ripple Current @ High Frequency 330 mA @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.417" (10.60mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 500
Win Source Part Number 1094407-337SMH025M
Ultra Librarian 3D Model Ultra Librarian 337SMH025M CAD Model

Description

The Cornell Dubilier / Illinois Capacitor SMH series aluminum electrolytic capacitor with a part number of 1094407-337SMH025M is a high-quality component that is suitable for general-purpose applications.

  • Package: Radial SMD Can
  • Capacitance: 330 µF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • ESR: 803.8mOhm @ 120Hz
  • Ripple Current (Low Frequency): 220 mA @ 120 Hz
  • Ripple Current (High Frequency): 330 mA @ 100 kHz
  • Temperature Range: -55 °C to 105 °C
