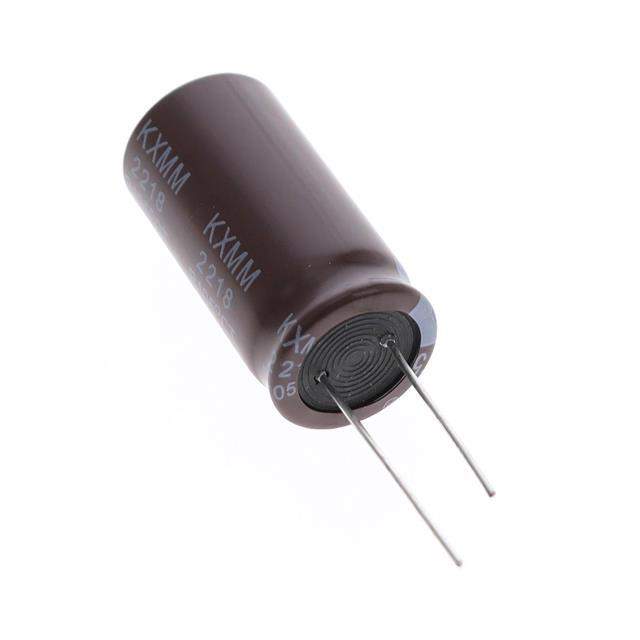

Same model may have multiple batches, images only for reference.

228KXM050M

Name: 228KXM050M
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1336724
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	228KXM050M
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 50V RADIAL / 2200 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 105.5mOhm @ 120Hz 5000 Hrs @ 105°C
Datasheet	228KXM050M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier / Illinois Capacitor
Series	KXM
Package	Bulk
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	105.5mOhm @ 120Hz
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.768 A @ 120 Hz
Ripple Current @ High Frequency	3.69 A @ 100 kHz
Impedance	55 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
California Prop 65	Warning Information
Win Source Part Number	1336724-228KXM050M
Ultra Librarian 3D Model	Ultra Librarian 228KXM050M CAD Model

Description

The Cornell Dubilier / Illinois Capacitor KXM series is a through-hole aluminum electrolytic capacitor with a capacitance of 2200 µF and a voltage rating of 50 V.

Capacitance: 2200 µF
Voltage Rating: 50 V
Tolerance: ±20%
Impedance: 55 mOhms
Ripple Current: 2.768 A @ 120 Hz (low frequency) and 3.69 A @ 100 kHz (high frequency)
Lifetime: 5000 hours @ 105°C
Package / Case: Radial, can
