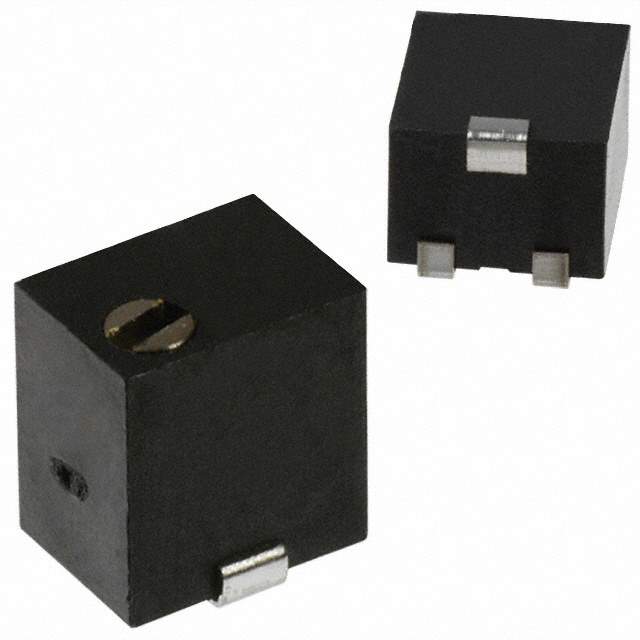

SM-42TW104 Real Image
Same model may have multiple batches, images only for reference.

SM-42TW104

Part No SM-42TW104
Manufacturer Copal Electronics Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 100K OHM 0.25W SMD / Res Cermet Trimmer 100K Ohm 10% 0.25W(1/4W) 11(Elec)Turns 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD T/R
Datasheet
SM-42TW104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Copal Electronics Inc.
Series SM42
Packaging Reel package
Resistance (Ohms) 100k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Square - 0.189" L x 0.138" W x 0.201" H (4.80mm x 3.50mm x 5.10mm)
Win Source Part Number 794557-SM-42TW104
Popularity Medium
Supply and Demand Status Limited
Family Name SM-42
Introduction Date September 26, 2005
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SM-42TW104 CAD Model

Description

The SM-42TW104 is a potentiometer variable resistor manufactured by Copal Electronics Inc.

  • Adjustment Type: Top
  • Resistive Material: Cermet
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Dimensions: 0.189" L x 0.138" W x 0.201" H (4.80mm x 3.50mm x 5.10mm)
  • Supply and Demand Status: Limited
