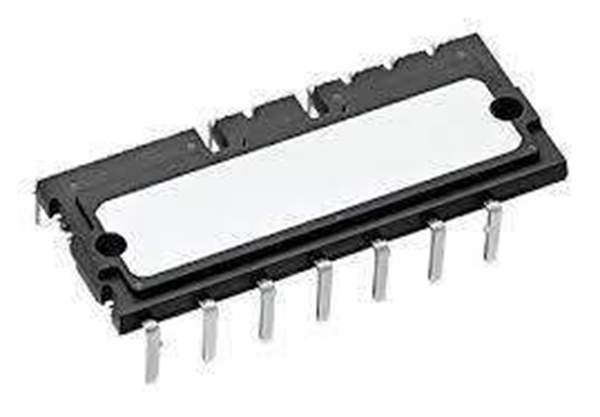

PSS15SA2FT Powerex Inc.
Same model may have multiple batches, images only for reference.

PSS15SA2FT

Part No PSS15SA2FT
Manufacturer Powerex Inc.
Catalog Power Drivers - Modules
Description MOD IPM 6-PAC 15A 1200V DIP
Datasheet
PSS15SA2FT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor >Products Power Driver Modules
Manufacturer Powerex Inc.
Packaging Tray
Part Status Discontinued
Type IGBT
Configuration 3 Phase
Voltage 1.2 kV
Voltage - Isolation 2500Vrms
Mounting Type Through Hole
Operating Temperature (Min) - 30 C
Ultra Librarian 3D Model Ultra Librarian PSS15SA2FT CAD Model

Description

  • 3 phase DC/AC inverter
  • 1200V/15A
    Built-in LPT-CSTBT (6th generation IGBT)
  • Built-in bootstrap diodes with current limiting resistor
  • Insulated transfer molding package
  • N-side lGBT open emitter
