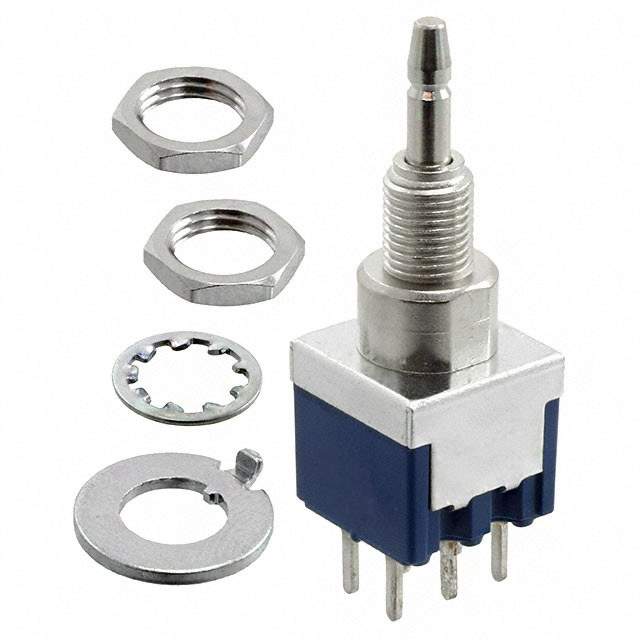

8N 2012-Z Real Image
Same model may have multiple batches, images only for reference.

8N 2012-Z

Part No 8N 2012-Z
Manufacturer Copal Electronics Inc.
Catalog Pushbutton Switches
Description Pushbutton Switch, DPDT, ON-ON, StraightPC Terminal, 6A@125VAC, 8N Series
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current Rating 4 A
Electrical Life 40 kcycles
Maximum Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Panel
Packaging Bulk
RoHS Compliant
Switch Function On-On
Termination PC Pin
Throw Configuration DPDT
Voltage Rating (AC) 125 V
Voltage Rating (DC) 30 V
Win Source Part Number 984485-8N 2012-Z
Categories Pushbutton Switches
Manufacturer Copal Electronics Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 8N 2012-Z CAD Model

Description

The Copal Electronics Inc. 8N 2012-Z is an On-On pushbutton switch designed for industrial applications.

  • Manufacturer: Copal Electronics Inc.
  • Switch Type: Pushbutton
  • Switch Function: On-On
  • Application: Industrial
  • Popularity: Low
  • Current Rating: 4A
  • Operating Temperature: -30°C to 85°C
  • Switch Configuration: DPDT
  • Mounting Type: Panel-mounted
  • RoHS: Compliant
