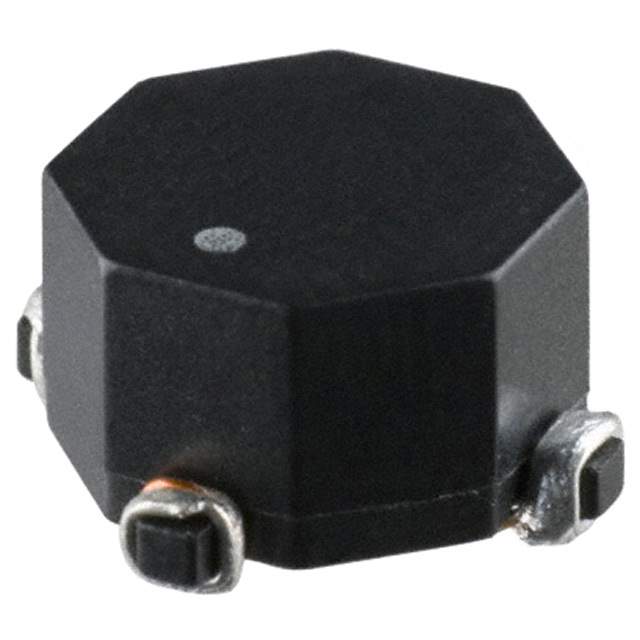

CMS2-1-R Real Image
Same model may have multiple batches, images only for reference.

CMS2-1-R

Part No CMS2-1-R
Manufacturer Cooper Bussmann, Inc.
Catalog Common Mode Chokes
Description CMC 25UH 5.35A 2LN SMD / 160C maximum total temperature Three sizes of surface mount torroidal common
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Filter Type Power Line
Number of Lines 2
Inductance at Frequency 25μH at 100kHz
Current Rating (Maximum) 5.35A
DC Resistance (DCR) (Maximum) 5mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting Style SMD
Dimension 0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Maximum) 0.236" (6.00mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811653-CMS2-1-R
Ultra Librarian 3D Model Ultra Librarian CMS2-1-R CAD Model

Description

The Eaton - Electronics Division CMS2-1-R is a power line filter with a maximum current rating of 5.35A.

  • Current Rating: 5.35A
  • DC Resistance (DCR): 5mOhm (Typ)
  • Inductance @ 100kHz: 25μH
  • Mounting Type: SMD
  • Packaging: Reel
  • Temperature Range: -40°C to 160°C
  • Height: 0.236" (6.00mm)
  • Manufacturer Package: Horizontal, 4 PC Pads
  • Popularity: High
  • Supply and Demand Status: Limited
  • MSL Level: 1 (Unlimited)
  • Manufacturer Pack Quantity: 800
