ON Semiconductor LB11868V-TLM-H: High-Efficiency Motor Driver

The ON Semiconductor LB11868V-TLM-H is a versatile and high-performance motor driver IC designed for the efficient control of three-phase brushless DC motors. This advanced semiconductor device is a perfect solution for a wide range of applications, including cooling fans, home appliances, and other small motor control systems that require precise and energy-efficient operation.

The LB11868V-TLM-H integrates a three-phase output stage with low RDS(on) MOSFETs, which translates to lower heat generation and increased energy efficiency during operation. This makes it an excellent choice for battery-powered devices where power conservation is a priority. The device operates within a power supply range of 10V to 16V, accommodating various application requirements.

One of the key features of the LB11868V-TLM-H is its built-in Hall sensor interface, which simplifies the motor control design by eliminating the need for external Hall effect sensors. This integration not only saves space but also reduces the overall system cost and complexity. The motor driver also includes a lock detection function that ensures the protection of the motor and the driver from potential damage caused by rotor lock conditions.

With its forward and reverse rotation control, the LB11868V-TLM-H offers designers flexibility in controlling motor direction, which is essential for applications that require bidirectional operation. Additionally, the IC incorporates overcurrent protection, thermal shutdown, and under-voltage lockout features, which contribute to the safety and longevity of the motor system.

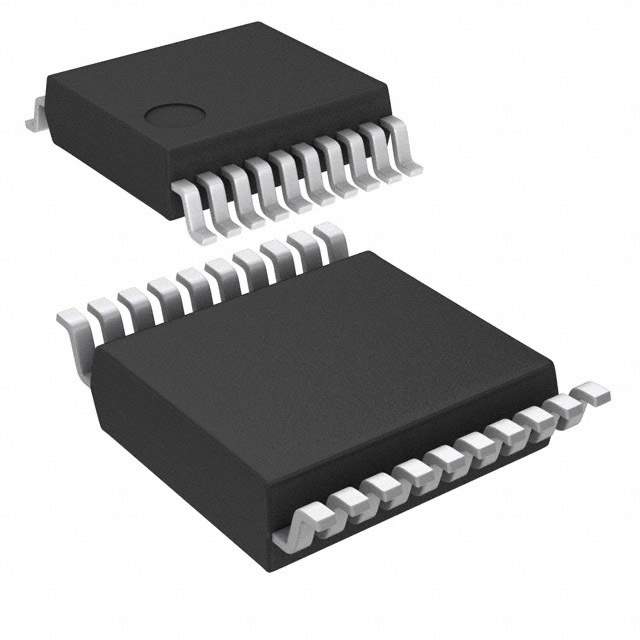

The LB11868V-TLM-H is available in a compact SSOP24 package, which is ideal for applications with limited space. The compact form factor, combined with the high level of integration, makes this motor driver a convenient and reliable choice for designers looking to create compact and efficient motor control solutions.

In summary, the ON Semiconductor LB11868V-TLM-H motor driver is a high-quality component that provides an efficient, robust, and cost-effective solution for controlling three-phase brushless DC motors. Its advanced features and protective functions make it an ideal choice for a variety of applications where reliability and efficiency are paramount.
