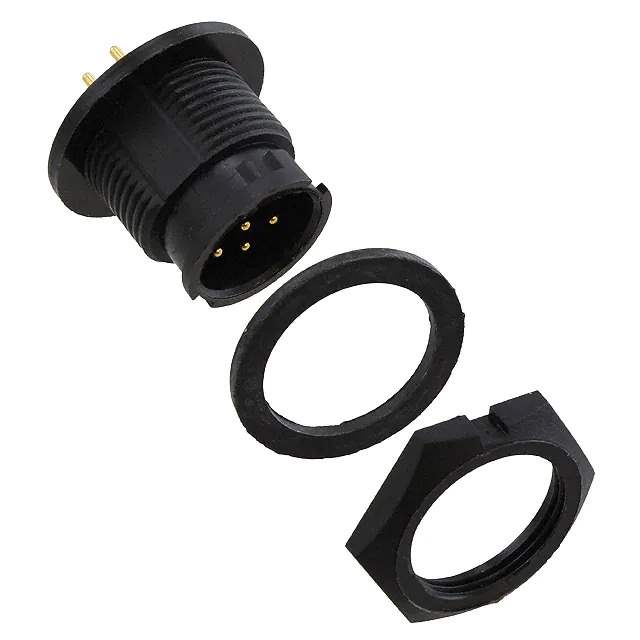

7281-6PG-300 Real Image
Same model may have multiple batches, images only for reference.

7281-6PG-300

Part No 7281-6PG-300
Manufacturer Conxall/Switchcraft
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 6POS GOLD SOLDER
Datasheet
7281-6PG-300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conxall/Switchcraft
Series Mini-Con-X®
Package Bulk
Product Status Active
Connector Type Receptacle, Male Pins
Number of Positions 6
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA), Nylon
Contact Finish - Mating Gold
Color Black
Ingress Protection Weathertight
Shielding Unshielded
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600V
Temperature Range - Operating -40°C ~ 115°C
Backshell Material, Plating Polyamide (PA), Nylon
Contact Material Brass
Applications Automotive, Communication Systems, Instrumentation
Base Product Number 7281-6PG
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 857121-7281-6PG-300
Ultra Librarian 3D Model Ultra Librarian 7281-6PG-300 CAD Model

Description

The 857121-7281-6PG-300 is a circular connector assembly from the Mini-Con-X® series by Conxall/Switchcraft.

  • Series: Mini-Con-X®
  • Applications: Automotive, communication systems, and instrumentation
  • Connector Type: Receptacle with male pins
  • Termination: Solder
  • Fastening Type: Bayonet lock
  • Contact Material: Brass
  • Voltage Rating: 600V
  • Ingress Protection: Weathertight
  • Shielding: Unshielded
  • Material Flammability Rating: -
  • Standard Package: 100 pieces
  • Mounting: Bulkhead on the front side nut
  • Shell Material: Polyamide (PA) and nylon
  • Product Status: Active
