Same model may have multiple batches, images only for reference.

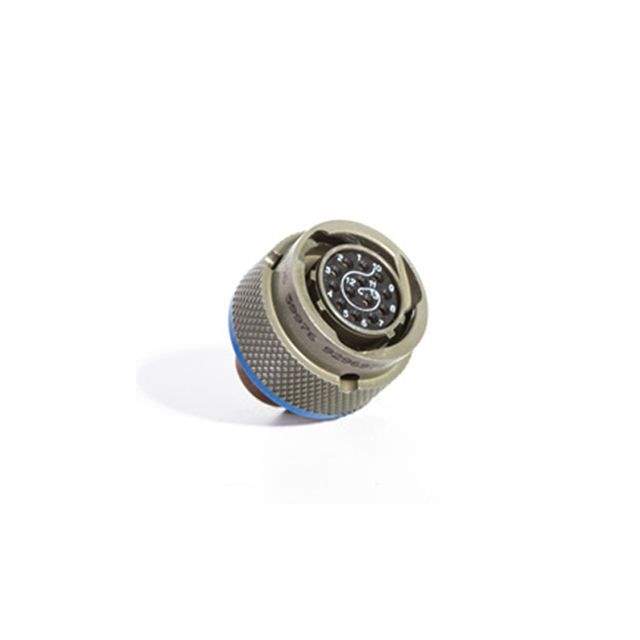

MS27473T22F35P-LC Real Image
Same model may have multiple batches, images only for reference.

MS27473T22F35P-LC

Part No MS27473T22F35P-LC
Manufacturer Conesys
Catalog Circular Connectors
Description AE2 100C 100#22D PIN PLUG / 100 Position Circular Connector Plug Housing Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr Conesys
Series Military, MIL-DTL-38999 Series II
Package Box
Connector Type Plug Housing
Type For Male Pins
Number of Positions 100
Shell Size - Insert 22-35
Contact Type Crimp
Contact Size 22D
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation N (Normal)
Shell Material Aluminum
Shell Finish Nickel
Housing Color Silver
Shielding Shielded
Note Contacts Not Included
Temperature Range - Operating -65°C ~ 200°C
Base Product Number MS27473T22F
MSL Level Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4020
Other Names 2403-MS27473T22F35P-LC
Standard Package 1
Win Source Part Number 1035843-MS27473T22F35P-LC
Ultra Librarian 3D Model Ultra Librarian MS27473T22F35P-LC CAD Model

Description

The Conesys MS27473T22F35P-LC is a plug housing connector.

  • Series: Military, MIL-DTL-38999 Series II
  • For Use With: Male Pins
  • Number of Positions: 100
  • Contact Size: 22D
  • Termination: Crimp
  • Fastening Type: Bayonet Lock
  • Shielded: Yes
  • Packaging: Box
  • RoHS: Compliant
  • Operating Temperature: -65°C to 200°C
  • Shell Material: Aluminum
  • Application: Circular Connectors and Housings
