Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Conec
Packaging Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Features Board Lock
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 125°C
Voltage Rating 125V
Current Rating 7.5A
Color Black
Contact Form Stamped
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Copper Alloy
Backset Spacing 0.315" (7.99mm)
Win Source Part Number 762143-302A11269X
Popularity Medium
Supply and Demand Status Limited
Family Name 302A
Introduction Date November 25, 2009
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 302A11269X CAD Model

Description

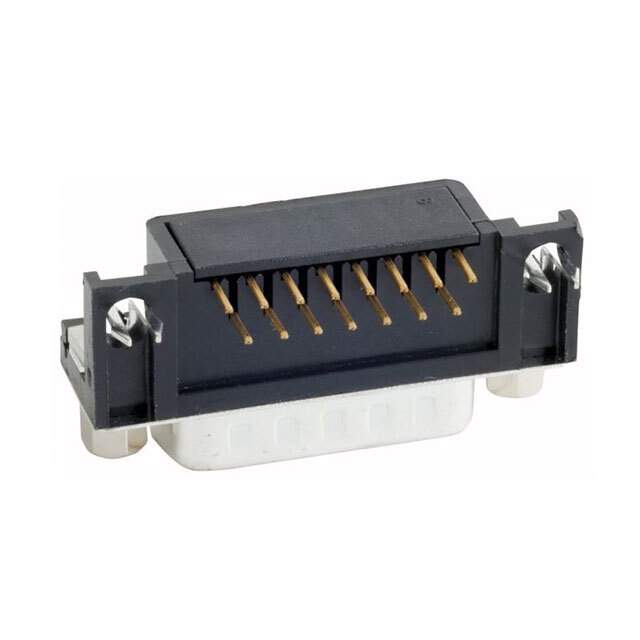

The 762143-302A11269X is a 25-position D-sub connector manufactured by Conec.

  • Housing Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Voltage Rating: 125V
  • Current Rating: 7.5A
  • Features: Board Lock
  • Mounting Style: Through Hole, Right Angle
  • Ingress Protection: IP20
  • Compliance: RoHS
  • Alternative Models: 1470024-1, DB-25SA-N, 747846-2
