Same model may have multiple batches, images only for reference.

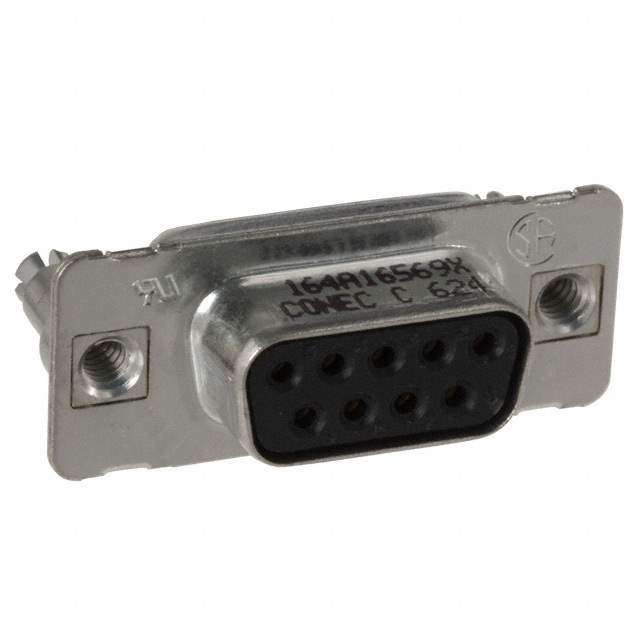

164A16669X Real Image
Same model may have multiple batches, images only for reference.

164A16669X

Part No 164A16669X
Manufacturer Conec
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS VERT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Conec
Series 164A
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A
Features Board Lock
Voltage Rating 125V
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 164A166
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339059-164A16669X
Ultra Librarian 3D Model Ultra Librarian 164A16669X CAD Model

Description

The 1339059-164A16669X is a D-sub connector assembly designed for use in a variety of applications from Conec.

  • Series: 164A
  • Number of Positions: 9
  • Connector Type: Receptacle with Female Sockets
  • Termination: Solder
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Current Rating: 7.5A
  • IP Rating: IP20
  • Flammability Rating: UL94 V-0
  • Shell Size: 1 (DE, E)
  • Mounting Type: Through-Hole
  • REACH: Not affected by REACH regulations
  • ECCN: EAR99 compliant
