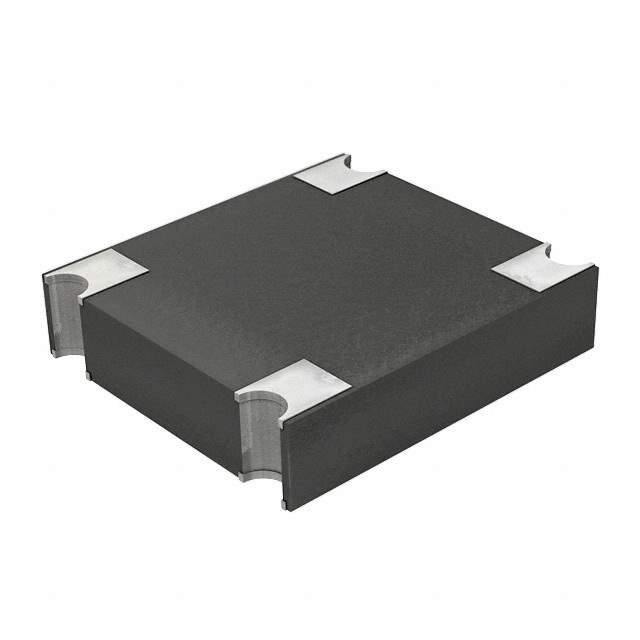

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Comchip Technology
Package Tape & Reel
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1 V @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Supplier Device Package ABS(Z4)
Base Product Number Z4GP208
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 641-1507-6,641-1507-1,641-1507-2
Standard Package 5,000
Win Source Part Number 998621-Z4GP208-HF
Ultra Librarian 3D Model Ultra Librarian Z4GP208-HF CAD Model

Description

The Comchip Technology 998621-Z4GP208-HF is a bridge rectifier diode used in discrete semiconductor products.

  • Maximum Voltage: 800 V
  • Current: 2 A
  • Diode Configuration: Single-Phase
  • Forward Voltage: 1 V @ 2 A
  • Temperature Range: -55°C to 175°C
