Same model may have multiple batches, images only for reference.

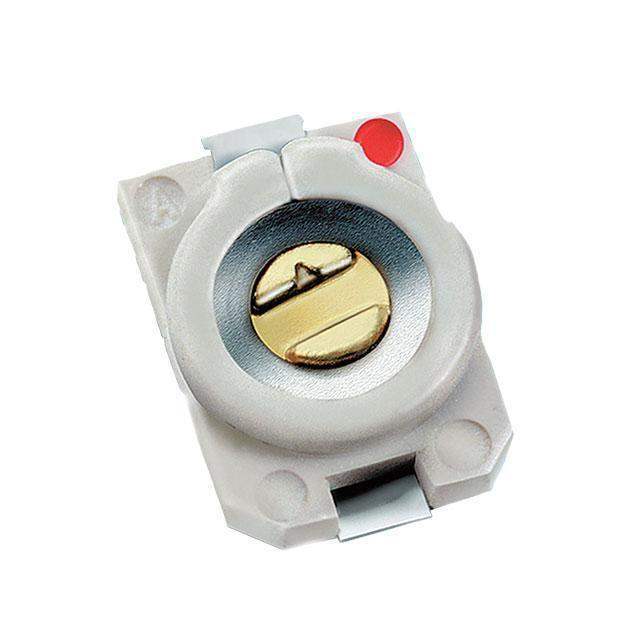

JZ400 Knowles Voltronics
Same model may have multiple batches, images only for reference.

JZ400

Part No JZ400
Manufacturer Knowles Voltronics
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 8-40PF 125V SMD
Datasheet
JZ400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197188-JZ400
Manufacturer Knowles Voltronics
Category Capacitors- Trimmers, Variable Capacitors
Series JZ
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Capacitance Range 8 ~ 40pF
Adjustment Type Top
Voltage - Rated 125 V
Dielectric Material Ceramic
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Ultra Librarian 3D Model Ultra Librarian JZ400 CAD Model

Description

The JZ series is a range of variable capacitors manufactured by Knowles Voltronics. These capacitors are designed for trimming applications and have a capacitance range of 8pF to 40pF. The JZ capacitors have a voltage rating of 125V and are made from ceramic dielectric material, ensuring high performance and reliability. They are available in a compact size of 0.177" L x 0.126" W (4.50mm x 3.20mm) and can be supplied in either tape & reel or cut tape packaging. With their active status and adjustable top design, the JZ capacitors are suitable for various electronic circuits and applications.
