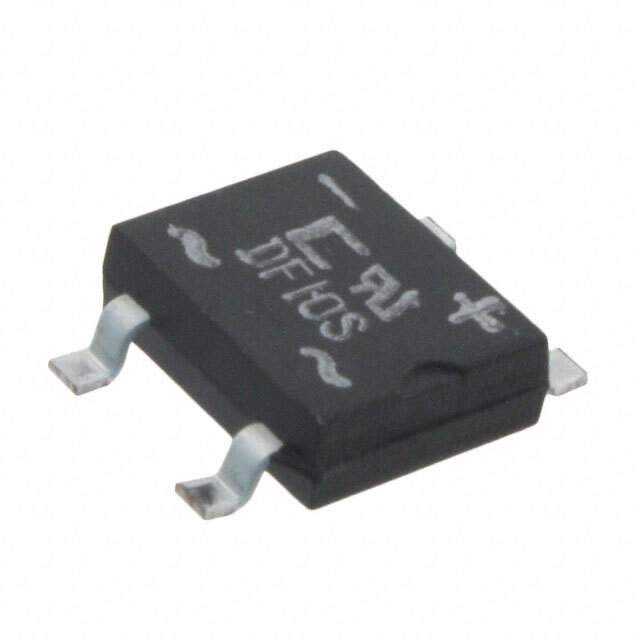

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Comchip Technology
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1kV
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 1A
Current - Reverse Leakage at Vr 10μA at 1000V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 4-SMD, Gull Wing
Supplier Device Package DFS
Part Number Series DF10
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801865-DF10S-G
Ultra Librarian 3D Model Ultra Librarian DF10S-G CAD Model

Description

The Comchip Technology 801865-DF10S-G is a diode from Comchip Technology.

  • Type: Single-Phase Diode
  • Peak Reverse Voltage: 1kV
  • Current Average Rectified (Io): 1A
  • Forward Voltage (Vf): 1.1V @ 1A
  • Reverse Leakage Current: 10μA @ 1000V
  • Package: 4-SMD, Gull Wing
  • Mounting: SMD
  • Operating Temperature: -55°C to 150°C
  • Technology: Standard
  • Packaging: Tube
  • Quantity Per Package: 50
