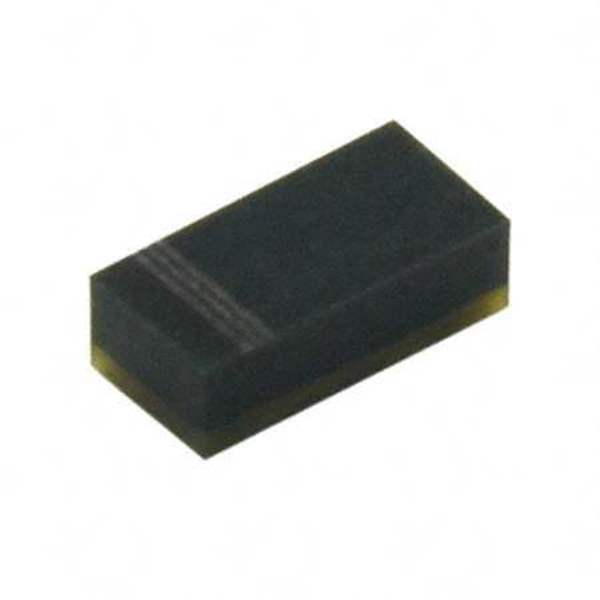

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 5.6 V
Tolerance ±5%
Power - Max 200 mW
Impedance (Max) (Zzt) 40 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 1 V
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1005 (2512 Metric)
Supplier Device Package 1005/SOD-323F
Base Product Number CZRF52
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 583305-CZRF52C5V6
Ultra Librarian 3D Model Ultra Librarian CZRF52C5V6 CAD Model

Description

The CZRF52C5V6 is a single Zener diode that belongs to the CZRF52 series of diodes.

  • Series: CZRF52
  • Type: Zener Diode
  • Package: Surface Mount
  • Packaging: Tape and Reel
  • Standard Quantity: 4,000 pcs
  • Power Rating: 200 mW
  • Forward Voltage: 900 mV @ 10 mA
  • Reverse Leakage Current: 100 nA @ 1 V
  • Zener Voltage: 5.6 V (±5%)
  • Impedance: 40 Ohms
  • Operating Temperature: -55°C to 125°C
  • Manufacturer: Comchip Technology
  • Product Status: Active
