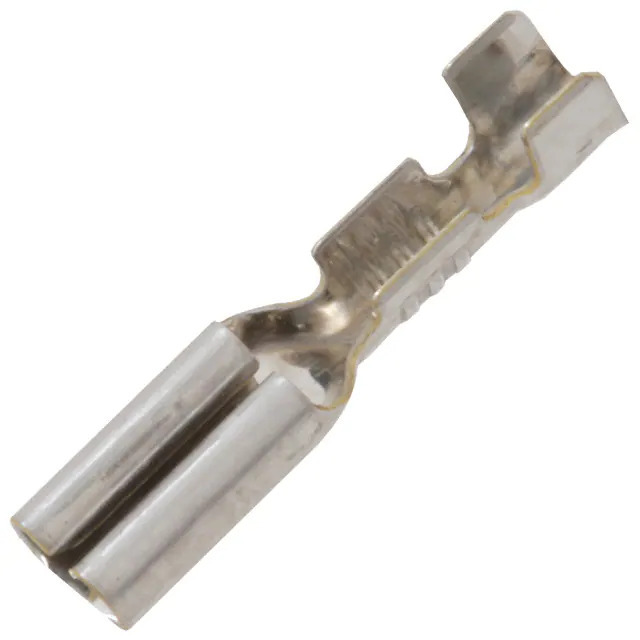

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.635" (16.13mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish -
Insulation Diameter 0.060" ~ 0.100" (1.52mm ~ 2.54mm)
Base Product Number 60197
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364850-60197-1
Ultra Librarian 3D Model Ultra Librarian 60197-1 CAD Model

Description

The TE Connectivity AMP Connectors Faston Quick Disconnect Connector is an essential component for quick and easy electrical connections. With a temperature range of -40°C to 125°C, this connector can withstand a wide range of operating conditions.

  • Temperature Range: -40°C ~ 125°C
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Gender: Female
  • Terminal Type: Standard
  • Tab Width: 0.110" (2.79mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.060" ~ 0.100" (1.52mm ~ 2.54mm)
