Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 5.1V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 75W
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Mounting SMD (SMT)

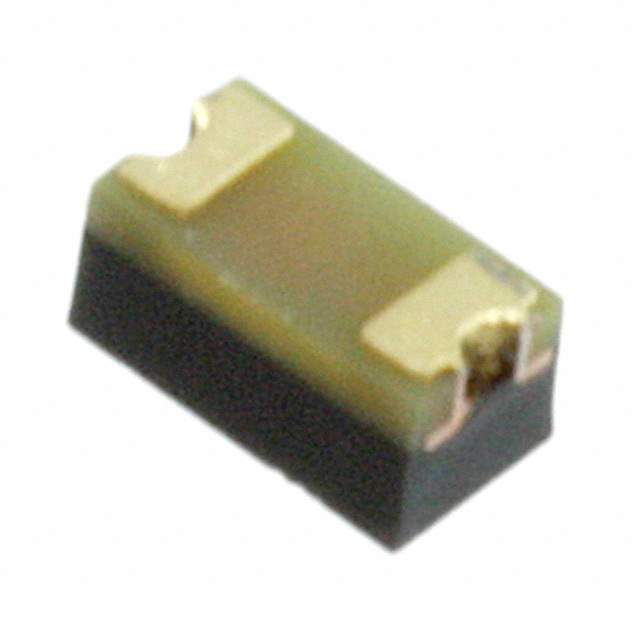

Case / Package 0603/SOD-523F
Win Source Part Number 050439-CPDU5V0-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDU5V0-HF CAD Model

Description

The CPDU5V0-HF is a high-performance electronic component designed for efficient signal protection. Known for its reliability and versatility, this component is perfect for various applications requiring voltage regulation and transient voltage suppression.

Features and Benefits:

  • High reliability and low capacitance, making it ideal for high-speed data communication.
  • Compliant with RoHS and HF, ensuring environmentally friendly performance.
  • Compact size suitable for space-constrained designs.

Applications/Projects:

  • Telecom equipment
  • Consumer electronics
  • LED lighting systems
  • Automotive electronics

With its advanced protection capabilities, the CPDU5V0-HF provides robust protection against voltage surges, ensuring the longevity of your electronic devices.
