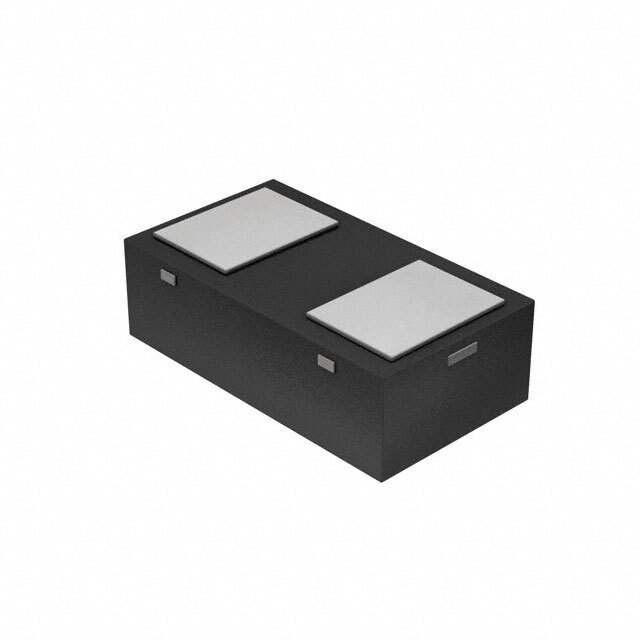

CPDQC5V0CSP-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQC5V0CSP-HF

Part No CPDQC5V0CSP-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 20VC 0402/SOD923F / 20V Clamp 3A (8/20μs) Ipp Tvs Diode Surface Mount 0402C/SOD-923F
Datasheet
CPDQC5V0CSP-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 20V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power - Peak Pulse 60W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.3pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 0402 (1006 Metric)
Supplier Device Package 0402C/SOD-923F
Base Product Number CPDQC5
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 580194-CPDQC5V0CSP-HF
Ultra Librarian 3D Model Ultra Librarian CPDQC5V0CSP-HF CAD Model

Description

The 580194-CPDQC5V0CSP-HF is a Zener type transient voltage suppressor (TVS) diode designed for general-purpose circuit protection.

  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 6V
  • Clamping Voltage: 20V @ Peak Pulse Current
  • Power Handling: 60W
  • Capacitance: 0.3pF @ 1MHz
  • Package Type: 0402 (1006 Metric)
  • Manufacturer: Comchip Technology
  • Product Status: Active
