Same model may have multiple batches, images only for reference.

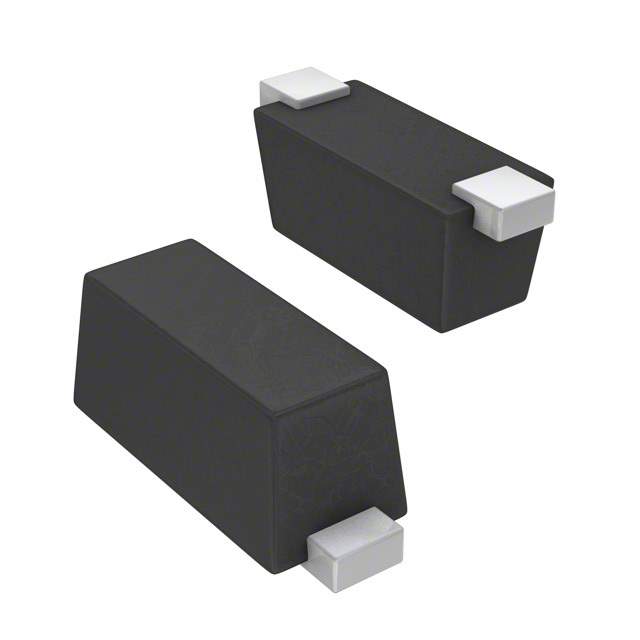

CPDQ5V0-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQ5V0-HF

Part No CPDQ5V0-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18.6VC SOD923F
Datasheet
CPDQ5V0-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 5.6V
Max Clamping Voltage 18.6V
Peak Pulse Current(Ippm) 9.4A (8/20μs)
Power Dissipation - Pd 174W
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030061-CPDQ5V0-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 8k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQ5V0-HF CAD Model

Description

The Comchip Technology 1030061-CPDQ5V0-HF is a Zener type circuit protection device that has a stand-off voltage (Vwm) of 5V.

  • Manufacturer: Comchip Technology
  • STAND-OFF Voltage (Vwm): 5V
  • Minimum Breakdown Voltage: 5.6V
  • Max Clamping Voltage: 18.6V
  • Peak Pulse Current (Ippm): 9.4A (8/20μs)
  • Power Dissipation - Pd: 174W
  • Capacitance: 15pF @ 1MHz
  • Operating Temperature: -40°C to 125°C
  • Package: 0402/SOD-923F
  • Quantity per Package: 8k pcs
  • ECCN: EAR99
