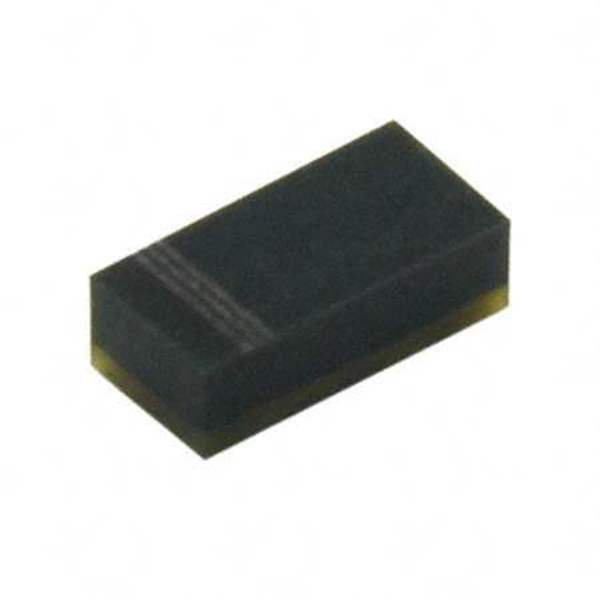

CPDF5V0 Real Image
Same model may have multiple batches, images only for reference.

CPDF5V0

Part No CPDF5V0
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC 1005/SOD323F / 15V Clamp 5A (8/20μs) Ipp Tvs Diode Surface Mount 1005/SOD-323F
Datasheet
CPDF5V0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 5.1V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 75W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Mounting Type Surface Mount
Package / Case 1005 (2512 Metric)
Supplier Device Package 1005/SOD-323F
Base Product Number CPDF5
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 867096-CPDF5V0
Ultra Librarian 3D Model Ultra Librarian CPDF5V0 CAD Model

Description

The 867096-CPDF5V0 is a zener TVS diode from Comchip Technology.

  • Category: Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
  • Application: General Purpose
  • Package: 1005 (2512 Metric)
  • Standard Package: 4,000 pieces
  • Voltage Reverse Standoff: 5V
  • Breakdown Voltage: 5.1V
  • Clamping Voltage @ Peak Pulse Current: 15V
  • Peak Pulse Power: 75W
  • Diode Configuration: Bidirectional
  • Number of Channels: 1
  • Capacitance: 15pF @ 1MHz
  • Peak Pulse Current: 5A for a 10/1000µs waveform and 8/20µs waveform
  • Mounting Technology: Surface Mount
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8541.10.0080
  • Product Status: Active
