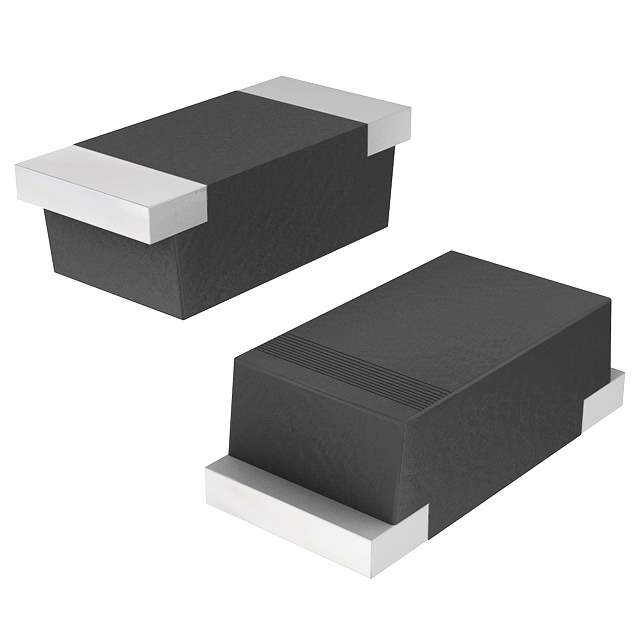

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.3V @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 500ns
Current - Reverse Leakage @ Vr 5μA @ 1000V
Mounting SMD (SMT)
Case / Package SOD-123H
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1029091-CFRMT107-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CFRMT107-HF CAD Model

Description

The CFRMT107-HF is a fast recovery standard diode from Comchip Technology with a maximum DC reverse voltage of 1000V.

  • Mounting Style: Surface mount, SOD-123H
  • Current Rating: 1A
  • Reverse Recovery Time (trr): 500ns
  • Forward Voltage (Vf): 1.3V @ 1A
  • Current Reverse Leakage: 5μA @ 1000V
  • Temperature Range: -55°C to 150°C
  • Packaging: 3k pcs per package
