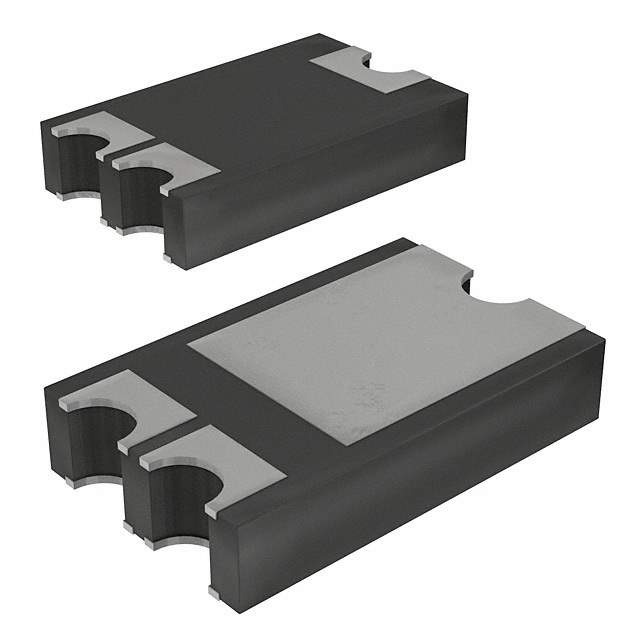

CDBZ310200H-HF Real Image
Same model may have multiple batches, images only for reference.

CDBZ310200H-HF

Part No CDBZ310200H-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 10A TO277 / Diode 200 V 10A Surface Mount TO-277 (Z3)
Datasheet
CDBZ310200H-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 820 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 200 V
Mounting Type Surface Mount
Package / Case TO-277, 3-PowerDFN
Supplier Device Package TO-277 (Z3)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number CDBZ310200
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1341485-CDBZ310200H-HF
Ultra Librarian 3D Model Ultra Librarian CDBZ310200H-HF CAD Model

Description

The Comchip Technology CDBZ310200H-HF is a Schottky rectifier diode with a fast recovery speed of less than 500ns and a current rating of 10A.

  • Recovery Speed: Fast, less than 500ns
  • Current Rating: 10A
  • Maximum Reverse Voltage: 200V
  • Forward Voltage: 820mV @ 10A
  • Package: TO-277 3-PowerDFN
  • Mounting: Surface mount
  • Operating Temperature: -55°C to 150°C
  • Product Status: Obsolete
  • Standard Package: 5,000 units
  • REACH: Unaffected
  • ECCN: EAR99
