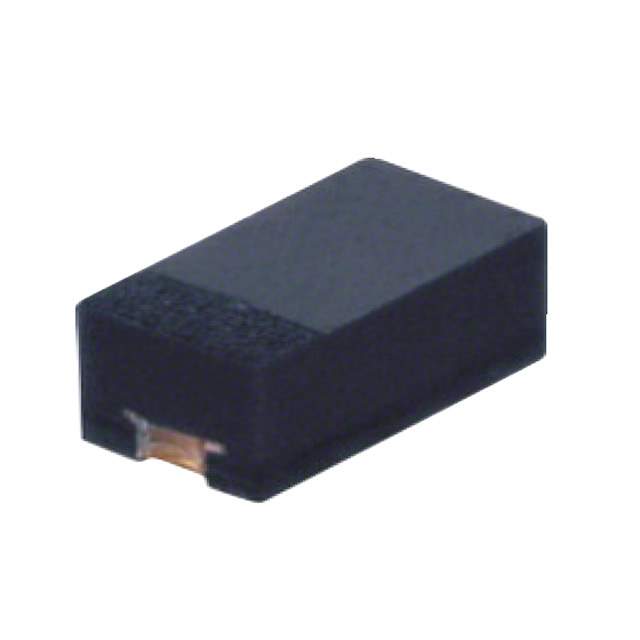

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Maximum) @ If 470mV @ 500mA
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 20V
Capacitance @ Vr, F 100pF @ 0V, 1MHz
Mounting SMD
Package 2-SMD, No Lead
Manufacturer Package 0603/SOD-523F
Operating Temperature - Junction 125°C (Maximum)
Win Source Part Number 1160528-CDBU0520
Manufacturer Homepage www.comchiptech.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 4k pcs
Family Name CDBU0520
Introduction Date April 12, 2007
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CDBU0520 CAD Model

Description

The CDBU0520 is a high-speed recovery diode manufactured by Comchip Technology that offers excellent performance.

  • Diode Type: Schottky
  • Current Rating: 500mA
  • Package: 2-SMD, no lead
  • Mounting Type: SMD
  • Operating Temperature Range: 125°C (maximum)
  • Category: Discrete Semiconductor Products
  • ECCN: EAR99
  • Manufacturer's Homepage: www.comchiptech.com
  • Manufacturer Package: 0603/SOD-523F
  • Voltage-Forward (Vf) (maximum) @ If: 470mV @ 500mA
  • Voltage-DC Reverse (Vr) (maximum): 20V
  • Estimated EOL Date: Obsolete
  • Quantity per Package: 4k pcs.
  • Supply and Demand Status: Limited
